# Analisi Esplorativa
## Rappresentazioni grafiche di tre o più dimensioni
### Aldo Solari

---

# Outline

1. Matrice dei diagrammi di dispersione

2. Diagramma tridimensionale

3. Facce di Chernhoff / Stelle

4. Diagramma di dispersione condizionato

---

# Dati Measures

*Argomenti: diagramma tridimensionale; matrice dei diagrammi di dispersione; facce di Chernoff; stelle*

I dati `measures` sono `$n=20$` osservazioni su `$p=4$` variabili:

* `chest`: misura petto
* `waist` : misura vita
* `hips` : misura fianchi
* `gender` : sesso (`male` o `female`)

---

Importiamo i dati `measures`.

```r
rm(list=ls())
# i dati si trovano sezione "dati" della pagina web del corso:
# potete scaricarli cliccando il tasto destro "Save as"
# oppure usare il loro URL (Uniform Resource Locator)
url <- "https://raw.githubusercontent.com/aldosolari/AE/master/docs/dati/measure.csv"
measure <- read.csv(url)
head(measure)
```

```
  chest waist hips gender
1    34    30   32   male
2    37    32   37   male
3    38    30   36   male
4    36    33   39   male
5    38    29   33   male
6    43    32   38   male
```

---

Costruire il diagramma tridimensionale per le variabili `chest`, `waist` e `hips`,  utilizzando il comando `cloud()` che è disponibile nel pacchetto `lattice`

---

```r
library(lattice)
cloud(chest ~ waist + hips, data=measure)
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-2-1.png)

---

Costruire il diagramma tridimensionale colorando le unità statistiche con colori diversi a seconda del sesso.

---

```r
cloud(chest ~ waist + hips, group=gender, data=measure)
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-3-1.png)

---

Funzioni R più avanzate permettono di costruire un diagramma tridimensionale interattivo:

```r
library(plotly)
p <- plot_ly(measure, x = ~waist, y = ~hips, z = ~chest, color = ~gender, colors = c("pink","blue")) %>%
 add_markers() %>%
 layout(scene = list(xaxis = list(title = 'x = waist (vita)'),
 yaxis = list(title = 'y = hips (fianchi)'),
 zaxis = list(title = 'z= chest (petto)')))
```

---

```r
p
```

<div id="htmlwidget-cc3ba35dce6f88eacb8a" style="width:504px;height:504px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-cc3ba35dce6f88eacb8a">{"x":{"visdat":{"27d93ea9d9d7":["function () ","plotlyVisDat"]},"cur_data":"27d93ea9d9d7","attrs":{"27d93ea9d9d7":{"x":{},"y":{},"z":{},"color":{},"colors":["pink","blue"],"alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"scatter3d","mode":"markers","inherit":true}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"scene":{"xaxis":{"title":"x = waist (vita)"},"yaxis":{"title":"y = hips (fianchi)"},"zaxis":{"title":"z= chest (petto)"}},"hovermode":"closest","showlegend":true},"source":"A","config":{"showSendToCloud":false},"data":[{"x":[24,25,24,22,26,26,25,26,28,23],"y":[35,37,37,34,38,37,38,37,40,35],"z":[36,36,34,33,36,37,34,36,38,35],"type":"scatter3d","mode":"markers","name":"female","marker":{"color":"rgba(255,192,203,1)","line":{"color":"rgba(255,192,203,1)"}},"textfont":{"color":"rgba(255,192,203,1)"},"error_y":{"color":"rgba(255,192,203,1)"},"error_x":{"color":"rgba(255,192,203,1)"},"line":{"color":"rgba(255,192,203,1)"},"frame":null},{"x":[30,32,30,33,29,32,33,30,30,32],"y":[32,37,36,39,33,38,42,40,37,39],"z":[34,37,38,36,38,43,40,38,40,41],"type":"scatter3d","mode":"markers","name":"male","marker":{"color":"rgba(0,0,255,1)","line":{"color":"rgba(0,0,255,1)"}},"textfont":{"color":"rgba(0,0,255,1)"},"error_y":{"color":"rgba(0,0,255,1)"},"error_x":{"color":"rgba(0,0,255,1)"},"line":{"color":"rgba(0,0,255,1)"},"frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---

Costruire la matrice dei diagrammi di dispersione colorando le unità statistiche con colori diversi a seconda del sesso.

---

```r
column.gender <- which(names(measure)=="gender")
plot(measure[,-column.gender], col=(measure$gender=="male")+1)
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-6-1.png)

---

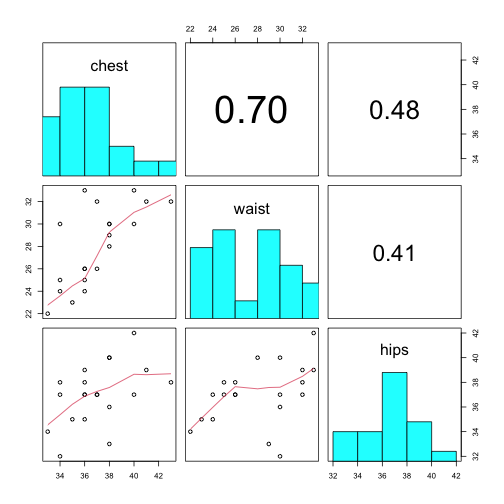

Funzioni R più avanzate permettono di aggiungere e.g. gli istogrammi sulla diagonale e i valori assoluti delle correlazioni

```r
panel.hist <- function(x, ...)
{
 usr <- par("usr"); on.exit(par(usr))
 par(usr = c(usr[1:2], 0, 1.5) )
 h <- hist(x, plot = FALSE)
 breaks <- h$breaks; nB <- length(breaks)
 y <- h$counts; y <- y/max(y)
 rect(breaks[-nB], 0, breaks[-1], y,
 col = "cyan", ...)
}

panel.cor <- function(x, y, digits = 2,
 prefix = "", cex.cor, ...)
{
 usr <- par("usr"); on.exit(par(usr))
 par(usr = c(0, 1, 0, 1))
 r <- abs(cor(x, y))
 txt <- format(c(r, 0.123456789), digits = digits)[1]
 txt <- paste0(prefix, txt)
 if(missing(cex.cor)) cex.cor <- 0.8/strwidth(txt)
 text(0.5, 0.5, txt, cex = cex.cor * r)
}
```

---

```r
library(MASS)
pairs(measure[,-column.gender], panel=panel.smooth,
      upper.panel=panel.cor, diag.panel=panel.hist)
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-8-1.png)

---

# Facce di Chernov

Herman Chernoff ha introdotto una tecnica di visualizzazione per
illustrare le tendenze nei dati multidimensionali.

Questo metodo consiste nel visualizzare i dati multidimensionali a forma
di volto umano; i diversi valori dei dati sono abbinati alle caratteristiche
del volto, per esempio la larghezza della faccia, il livello delle orecchie,
la lunghezza o la curvatura della bocca, la lunghezza del naso, ecc.

L'idea che sta dietro all’uso delle facce è che le persone riconoscono i
volti e notano piccoli cambiamenti senza difficoltà.

Nella pratica questo metodo viene raramente utilizzato

---

Costruire le facce di Chernoff corrispondenti ai 20 individui escludendo la variabile `gender` utilizzando il comando `faces()` presente nel pacchetto `TeachingDemos`

---

```r
library("TeachingDemos")
faces(measure[,-column.gender], scale=TRUE) #scale=TRUE standardizza i dati
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-9-1.png)

---

# Stelle

Questa rappresentazione grafica consiste di una sequenza di raggi che
hanno origine da un centro e formano angoli uguali tra loro; ogni raggio
rappresenta una delle variabili.

La distanza dal centro del punto marcato sul raggio è proporzionale al
valore della variabile rispetto al valore massimo raggiungibile.

I punti sui raggi vengono congiunti con segmenti, così che il grafico ha
la forma di una stella o di una ragnatela.

Anche questo metodo viene scarsamente utilizzato

---

Rappresentare gli individui con le stelle utilizzando il comando `stars()`, aggiungendo la legenda con l’argomento `key.loc = c(10,10)`.

---

```r
stars(measure[,-column.gender], scale=TRUE,
      key.loc = c(10, 10)) # per posizionare la legenda alle coordinate (x,y)
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-10-1.png)

---

# Dati Quakes

*Argomento: diagramma di dispersione condizionato*

Il data.frame `quakes` è presente nel pacchetto `dataset`. Si tratta di `$n=1000$` osservazioni misurate su `$p=5$` variabili:

* `lat`		Latitude of event
*	`long`		Longitude
*	`depth`		Depth (km)
*	`mag`		Richter Magnitude
*	`stations`	Number of stations reporting

---

Il diagramma di dispersione per latitudine e longitudine dei terremoti, utilizzando il simbolo `.` per indicare le osservazioni, si ottiene con:

```r
data("quakes")
plot(lat ~ long, quakes, pch=".")
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-11-1.png)

---

Funzioni R più avanzate permettono di aggiungere la posizione degli eventi sismici sulla mappa geografica

```r
library(leaflet)

mybins <- seq(4, 6.5, by=0.5)
mypalette <- colorBin( palette="YlOrBr", domain=quakes$mag, na.color="transparent", bins=mybins)

mytext <- paste(
 "Depth: ", quakes$depth, " ",
 "Stations: ", quakes$stations, " ",
 "Magnitude: ", quakes$mag, sep="") %>%
 lapply(htmltools::HTML)

m <- leaflet(quakes) %>%
 addTiles() %>%
 setView( lat=-27, lng=170 , zoom=4) %>%
 addProviderTiles("Esri.WorldImagery") %>%
 addCircleMarkers(~long, ~lat,
 fillColor = ~mypalette(mag), fillOpacity = 0.7, color="white", radius=4, stroke=FALSE,
 label = mytext,
 labelOptions = labelOptions( style = list("font-weight" = "normal", padding = "3px 8px"), textsize = "13px", direction = "auto")
 ) %>%
 addLegend( pal=mypalette, values=~mag, opacity=0.9, title = "Magnitude", position = "bottomright" )
```

---

```r
m
```

<div id="htmlwidget-00a224c1d6f61433e6ff" style="width:504px;height:504px;" class="leaflet html-widget"></div>
<script type="application/json" data-for="htmlwidget-00a224c1d6f61433e6ff">{"x":{"options":{"crs":{"crsClass":"L.CRS.EPSG3857","code":null,"proj4def":null,"projectedBounds":null,"options":{}}},"calls":[{"method":"addTiles","args":["//{s}.tile.openstreetmap.org/{z}/{x}/{y}.png",null,null,{"minZoom":0,"maxZoom":18,"tileSize":256,"subdomains":"abc","errorTileUrl":"","tms":false,"noWrap":false,"zoomOffset":0,"zoomReverse":false,"opacity":1,"zIndex":1,"detectRetina":false,"attribution":"© <a href=\"http://openstreetmap.org\">OpenStreetMap<\/a> contributors, <a href=\"http://creativecommons.org/licenses/by-sa/2.0/\">CC-BY-SA<\/a>"}]},{"method":"addProviderTiles","args":["Esri.WorldImagery",null,null,{"errorTileUrl":"","noWrap":false,"detectRetina":false}]},{"method":"addCircleMarkers","args":[[-20.42,-20.62,-26,-17.97,-20.42,-19.68,-11.7,-28.11,-28.74,-17.47,-21.44,-12.26,-18.54,-21,-20.7,-15.94,-13.64,-17.83,-23.5,-22.63,-20.84,-10.98,-23.3,-30.2,-19.66,-17.94,-14.72,-16.46,-20.97,-19.84,-22.58,-16.32,-15.55,-23.55,-16.3,-25.82,-18.73,-17.64,-17.66,-18.82,-37.37,-15.31,-24.97,-15.49,-19.23,-30.1,-26.4,-11.77,-24.12,-18.97,-18.75,-19.26,-22.75,-21.37,-20.1,-19.85,-22.7,-22.06,-17.8,-24.2,-20.69,-21.16,-13.82,-11.49,-20.68,-17.1,-20.14,-21.96,-20.42,-15.46,-15.31,-19.86,-11.55,-23.74,-17.7,-23.54,-19.21,-12.11,-21.81,-28.98,-34.02,-23.84,-19.57,-20.12,-17.7,-19.66,-21.5,-23.64,-15.43,-15.41,-15.48,-13.36,-20.64,-19.72,-15.44,-19.73,-27.24,-18.16,-13.66,-24.57,-16.98,-26.2,-21.88,-33,-21.33,-19.44,-34.89,-20.24,-22.55,-36.95,-15.75,-16.85,-19.06,-26.11,-26.2,-26.13,-13.66,-13.47,-14.6,-18.96,-14.65,-19.9,-22.05,-19.22,-31.24,-17.93,-19.3,-26.53,-27.72,-19.19,-17.43,-17.05,-19.52,-23.71,-21.3,-16.24,-16.14,-23.95,-25.2,-18.84,-12.66,-20.65,-13.23,-29.91,-14.31,-20.1,-17.8,-21.27,-23.58,-17.9,-23.34,-15.56,-23.83,-11.8,-15.54,-20.65,-11.75,-24.81,-20.9,-11.34,-17.98,-24.34,-13.86,-35.56,-35.48,-34.2,-26,-19.89,-23.43,-18.89,-17.82,-25.68,-20.2,-15.2,-15.03,-32.22,-22.64,-17.42,-17.84,-15.02,-18.04,-24.6,-19.88,-20.3,-20.45,-17.67,-22.3,-19.85,-24.27,-15.85,-20.02,-18.56,-17.87,-24.08,-32.2,-20.36,-23.85,-24,-20.41,-17.72,-19.67,-17.7,-16.23,-26.72,-12.95,-21.97,-21.96,-20.32,-30.28,-20.2,-30.66,-16.17,-28.25,-20.47,-23.55,-20.94,-26.67,-18.13,-20.21,-18.31,-16.52,-22.36,-22.43,-20.37,-23.77,-13.65,-21.55,-16.24,-23.73,-22.34,-19.4,-24.64,-16,-19.62,-23.84,-23.54,-28.23,-21.68,-13.44,-24.96,-20.08,-24.36,-14.7,-18.2,-16.65,-18.11,-17.95,-15.5,-23.36,-19.15,-10.97,-14.85,-17.8,-22.5,-29.1,-20.32,-16.09,-19.18,-23.81,-23.79,-19.02,-20.9,-19.06,-17.88,-19.41,-26.17,-14.95,-18.73,-20.21,-21.29,-19.76,-22.09,-23.8,-20.16,-22.13,-17.44,-23.33,-24.78,-22,-19.13,-30.72,-22.32,-16.45,-17.7,-17.95,-24.4,-19.3,-21.13,-18.07,-20.6,-18.48,-13.34,-20.92,-25.31,-15.24,-16.4,-24.57,-17.94,-30.64,-18.64,-13.09,-19.68,-16.44,-21.09,-14.99,-23.3,-17.68,-22,-21.38,-32.62,-13.05,-12.93,-18.6,-21.34,-21.48,-17.4,-17.32,-18.77,-26.16,-12.59,-14.82,-21.79,-19.83,-29.5,-12.49,-26.1,-21.04,-10.78,-20.76,-11.41,-19.1,-23.91,-27.33,-12.25,-23.49,-27.18,-25.8,-27.19,-27.27,-27.1,-27.22,-27.38,-27.27,-27.54,-27.2,-27.71,-27.6,-27.38,-21.54,-27.21,-28.96,-12.01,-17.46,-30.17,-27.27,-17.79,-22.19,-17.1,-27.18,-11.64,-17.98,-16.9,-21.98,-32.14,-18.8,-26.78,-20.43,-18.3,-15.83,-23.44,-23.73,-19.89,-17.59,-19.77,-20.31,-15.33,-18.2,-15.36,-15.29,-15.36,-16.24,-13.47,-25.5,-14.32,-20.04,-28.83,-17.82,-27.23,-10.72,-27,-20.36,-27.17,-20.94,-17.46,-21.04,-23.7,-17.72,-15.87,-17.84,-13.45,-30.8,-11.63,-30.4,-26.18,-15.7,-17.95,-20.51,-15.36,-23.61,-33.2,-17.68,-22.24,-20.07,-25.04,-21.5,-14.28,-14.43,-32.7,-34.1,-19.7,-24.19,-26.6,-17.04,-22.1,-32.6,-33,-20.58,-20.61,-19.47,-17.47,-18.4,-23.33,-18.55,-26.16,-21.8,-27.63,-18.89,-20.3,-20.56,-16.1,-12.66,-21.05,-17.97,-19.83,-22.55,-22.28,-15.72,-20.85,-21.11,-25.31,-26.46,-24.09,-16.96,-23.19,-20.81,-15.03,-18.06,-19,-23.53,-18.18,-15.66,-18,-18.08,-18.05,-29.9,-20.9,-15.61,-16.03,-17.68,-31.94,-19.14,-18,-16.95,-10.79,-20.83,-32.9,-37.93,-29.09,-23.56,-19.6,-21.39,-14.85,-22.7,-32.42,-17.9,-23.58,-34.4,-17.61,-21.07,-13.84,-30.24,-18.49,-23.45,-16.04,-17.14,-22.54,-15.9,-30.04,-24.03,-18.89,-16.51,-20.1,-21.06,-13.07,-23.46,-19.41,-11.81,-11.76,-12.08,-25.59,-26.54,-20.9,-16.99,-23.46,-17.81,-15.17,-11.67,-20.75,-19.5,-26.18,-20.66,-19.22,-24.68,-15.43,-32.45,-21.31,-15.44,-13.26,-15.26,-33.57,-15.77,-15.79,-21,-16.28,-23.28,-16.1,-17.7,-15.96,-15.95,-17.56,-15.9,-15.29,-15.86,-16.2,-15.71,-16.45,-11.54,-19.61,-15.61,-21.16,-20.65,-20.33,-15.08,-23.28,-23.44,-23.12,-23.65,-22.91,-22.06,-13.56,-17.99,-23.92,-30.69,-21.92,-25.04,-19.92,-27.75,-17.71,-19.6,-34.68,-14.46,-18.85,-17.02,-20.41,-18.18,-16.49,-17.74,-20.49,-18.51,-27.28,-15.9,-20.57,-11.25,-20.04,-20.89,-16.62,-20.09,-24.96,-20.95,-23.31,-20.95,-21.58,-13.62,-12.72,-21.79,-20.48,-12.84,-17.02,-23.89,-23.07,-27.98,-28.1,-21.24,-21.24,-19.89,-32.82,-22,-21.57,-24.5,-33.03,-30.09,-22.75,-17.99,-19.6,-15.65,-17.78,-22.04,-20.06,-18.07,-12.85,-33.29,-34.63,-24.18,-23.78,-22.37,-23.97,-34.12,-25.25,-22.87,-18.48,-21.46,-28.56,-28.56,-21.3,-20.08,-18.82,-19.51,-12.05,-17.4,-23.93,-21.23,-16.23,-28.15,-20.81,-20.72,-23.29,-38.46,-15.48,-37.03,-20.48,-18.12,-18.17,-11.4,-23.1,-14.28,-22.87,-17.59,-27.6,-17.94,-17.88,-30.01,-19.19,-18.14,-23.46,-18.44,-18.21,-18.26,-15.85,-23.82,-18.6,-17.8,-10.78,-18.12,-19.34,-15.34,-24.97,-15.97,-23.47,-23.11,-20.54,-18.92,-20.16,-25.48,-18.19,-15.35,-18.69,-18.89,-17.61,-20.93,-17.6,-17.96,-18.8,-20.61,-20.74,-25.23,-23.9,-18.07,-15.43,-14.3,-18.04,-13.9,-17.64,-17.98,-25,-19.45,-16.11,-23.73,-17.74,-21.56,-20.97,-15.45,-15.93,-21.47,-21.44,-22.16,-13.36,-21.22,-26.1,-18.35,-17.2,-22.42,-17.91,-26.53,-26.5,-16.31,-18.76,-17.1,-19.28,-23.5,-21.26,-17.97,-26.02,-30.3,-24.89,-14.57,-15.4,-22.06,-25.14,-20.3,-25.28,-20.63,-19.02,-22.1,-38.59,-19.3,-31.03,-30.51,-22.55,-22.14,-25.6,-18.04,-21.29,-21.08,-20.64,-24.41,-12.16,-17.1,-21.13,-12.34,-16.43,-20.7,-21.18,-17.78,-21.57,-13.7,-12.27,-19.1,-19.85,-11.37,-20.7,-20.24,-16.4,-19.6,-21.63,-21.6,-21.77,-21.8,-21.05,-10.8,-17.9,-22.26,-22.33,-24.04,-20.4,-15,-27.87,-14.12,-23.61,-21.56,-21.19,-18.07,-26,-20.21,-28,-20.74,-31.8,-18.91,-20.45,-22.9,-18.11,-23.8,-23.42,-23.2,-12.93,-21.14,-19.13,-21.08,-20.07,-20.9,-25.04,-21.85,-19.34,-15.83,-23.73,-18.1,-22.12,-15.39,-16.21,-21.75,-22.1,-24.97,-19.36,-22.14,-21.48,-18.54,-21.62,-13.4,-15.5,-15.67,-21.78,-30.63,-15.7,-19.2,-19.7,-19.4,-15.85,-17.38,-24.33,-20.89,-18.97,-17.99,-15.8,-25.42,-21.6,-26.06,-17.56,-25.63,-25.46,-22.23,-21.55,-15.18,-13.79,-15.18,-18.78,-17.9,-18.5,-14.82,-15.65,-30.01,-13.16,-21.03,-21.4,-17.93,-20.87,-12.01,-19.1,-22.85,-17.08,-21.14,-12.23,-20.91,-11.38,-11.02,-22.09,-17.8,-18.94,-18.85,-21.91,-22.03,-18.1,-18.4,-21.2,-12,-11.7,-26.72,-24.39,-19.64,-21.35,-22.82,-38.28,-12.57,-22.24,-13.8,-21.07,-17.74,-23.87,-21.29,-22.2,-15.24,-17.82,-32.14,-19.3,-33.09,-20.18,-17.46,-17.44,-24.71,-21.53,-19.17,-28.05,-23.39,-22.33,-15.28,-20.27,-10.96,-21.52,-19.57,-23.08,-25.06,-17.85,-15.99,-20.56,-17.98,-18.4,-27.64,-20.99,-14.86,-29.33,-25.81,-14.1,-17.63,-23.47,-23.92,-20.88,-20.25,-19.33,-18.14,-22.41,-20.77,-17.95,-20.83,-27.84,-19.94,-23.6,-23.7,-30.39,-18.98,-27.89,-23.5,-23.73,-17.93,-35.94,-18.68,-23.47,-23.49,-23.85,-27.08,-20.88,-20.97,-21.71,-23.9,-15.78,-12.57,-19.69,-22.04,-17.99,-23.5,-21.4,-15.86,-23.95,-25.79,-23.75,-24.1,-18.56,-23.3,-17.03,-20.77,-28.1,-18.83,-23,-20.82,-22.95,-28.22,-27.99,-15.54,-12.37,-22.33,-22.7,-17.86,-16,-20.73,-15.45,-20.05,-17.95,-17.7,-25.93,-12.28,-20.13,-17.4,-21.59],[181.62,181.03,184.1,181.66,181.96,184.31,166.1,181.93,181.74,179.59,180.69,167,182.11,181.66,169.92,184.95,165.96,181.5,179.78,180.31,181.16,166.32,180.16,182,180.28,181.49,167.51,180.79,181.47,182.37,179.24,166.74,185.05,180.8,186,179.33,169.23,181.28,181.4,169.33,176.78,186.1,179.82,186.04,169.41,182.3,181.7,166.32,180.08,185.25,182.35,184.42,173.2,180.67,182.16,182.13,181,180.6,181.35,179.2,181.55,182.4,172.38,166.22,181.41,184.93,181.6,179.62,181.86,187.81,185.8,184.35,166.2,179.99,181.23,180.04,184.7,167.06,181.71,181.11,180.21,180.99,182.38,183.4,181.7,184.31,170.5,179.96,186.3,186.44,167.53,167.06,182.02,169.71,185.26,182.4,181.11,183.41,166.54,179.92,185.61,178.41,180.39,181.6,180.69,183.5,180.6,169.49,185.9,177.81,185.23,182.31,182.45,178.3,178.35,178.31,172.23,172.29,167.4,169.48,166.97,178.9,180.4,182.43,180.6,167.89,183.84,178.57,181.7,183.51,185.43,181.22,168.98,180.3,180.82,168.02,187.32,182.8,182.6,184.16,169.46,181.4,167.1,181.43,173.5,184.4,185.17,173.49,180.17,181.5,184.5,167.62,182.56,165.8,167.68,181.32,166.07,180,169.84,166.24,180.5,179.52,167.16,180.2,179.9,179.43,182.12,183.84,180,169.42,181.83,180.34,180.9,184.68,182.29,180.2,180.64,185.16,181.48,184.24,181.75,183.5,184.3,183,181.85,187.09,181.9,181.85,179.88,185.13,184.09,169.31,182,179.5,179.61,181.19,182.53,182.75,181.74,180.3,182.18,182.2,183.59,183.35,169.09,182.32,180.54,181.69,180.62,182.3,180.13,184.1,181.71,185.68,180.27,181.58,182.4,181.52,183.83,182.39,185.7,171.65,184.48,182.1,180.16,166.66,182.9,185.75,182.53,171.52,180.94,180.81,182.82,185.35,180.13,179.93,182.68,180.63,166.53,180.22,182.74,182.84,166,183.68,185.51,181.67,181.65,186.9,180.01,169.5,166.26,167.24,181.38,170.4,182.1,180.88,184.89,169.33,179.36,179.89,184.23,181.51,169.01,181.47,183.05,184.2,167.24,168.8,182.37,180.85,181.41,180.38,179.9,181.99,180.38,181.4,180.18,179.22,180.52,182.51,180.1,180.54,177.77,185,184.68,179.85,180.6,185.32,181.57,182.28,181.49,166.2,181.5,179.69,186.21,185.86,178.4,181.51,181.2,169.32,169.28,184.14,185.74,181.38,171.39,179.7,181.36,180.53,181.39,181.5,169.58,169.63,181.91,181.41,183.78,181.02,181.03,169.24,179.5,167.1,167.32,183.48,182.04,182.31,166.36,182.3,181.2,165.77,185.77,166.24,183.87,180,182.6,166.6,179.07,182.18,182.1,182.18,182.38,182.18,182.28,181.7,182.5,182.5,182.39,182.47,182.4,182.39,185.48,182.43,182.61,166.29,181.32,182.02,182.36,181.32,171.4,182.68,182.53,166.47,181.58,185.72,179.6,179.9,169.21,183.61,182.37,183.2,182.51,182.93,179.99,184.08,181.09,181.4,184.06,186.75,181.6,186.66,186.42,186.71,167.95,167.14,182.82,167.33,182.01,181.66,181.49,180.98,165.99,183.88,186.16,183.68,181.26,181.9,181.2,179.6,181.42,188.13,181.3,170.3,182.16,166.14,181.4,178.59,184.5,181.5,182.3,167.51,180.23,181.6,186.8,184.56,169.14,180.1,185.2,167.26,167.26,181.7,181.8,186.2,180.38,182.77,186.8,179.71,180.9,182.4,181.24,182.6,169.15,180.96,183.4,180.26,182.23,178.47,183.2,182.93,169.48,182.3,182.04,185.32,166.37,184.68,168.52,182.54,183.81,183.52,185.64,181.59,181.5,180.15,182.5,179.68,167.7,182.8,184.7,167.32,181.59,185.6,179.99,180.63,186.8,180.62,180.7,180.86,181.16,181.9,167.5,185.43,181.11,180.57,184.36,185.48,185.94,166.06,185.9,181.6,177.47,183.2,180.23,185.2,180.68,184.87,183.3,181.21,181.3,183.4,180.5,181.2,181.13,170.62,181.63,169.04,180.23,183.54,185.31,172.91,185.3,181.2,180.22,184.46,187.1,186.3,183.81,166.87,180.09,182.3,165.98,165.96,165.76,180.02,183.63,184.28,187,180.17,181.82,187.2,166.02,184.52,186.9,179.79,185.77,182.54,183.33,167.38,181.15,180.84,167.18,167.01,183.13,180.8,167.01,166.83,183.2,166.94,184.6,167.25,181.31,166.69,167.34,181.59,167.42,166.9,166.85,166.8,166.91,167.54,166.18,181.91,187.15,181.41,182.22,168.71,166.62,184.61,184.6,184.42,184.46,183.95,180.47,166.49,181.57,184.47,182.1,182.8,180.97,183.91,182.26,181.18,183.84,179.82,167.26,187.55,182.41,186.51,182.04,187.8,181.31,181.69,182.64,183.4,167.16,181.33,166.36,181.87,181.25,186.74,168.75,179.87,181.42,179.27,181.06,181.9,167.15,166.28,185,169.76,166.78,182.93,182.39,184.03,181.96,182.25,180.81,180.86,174.46,179.8,185.5,185.62,180.92,180.2,182.4,170.99,168.98,181.87,186.26,181.53,184.91,168.69,181.54,165.67,181.3,179.1,179.02,180.31,171.5,179.91,181.75,179.86,172.65,182.37,181.02,183.47,183.59,180.92,183.22,182.21,183.97,167.39,186.54,180.18,181.09,167.91,183.4,185.01,181.41,184,176.03,186.73,177.52,181.38,181.88,181.98,166.07,180.12,170.34,171.72,180.98,182.1,180.6,180.58,180.8,182.3,180.87,180.11,181.04,180.87,180.98,184.83,180.09,184.28,181.32,166.1,181.71,182.62,167.1,182.85,186.08,180.24,179.15,181.66,169.37,184.27,180.94,181.74,186.4,169.1,181.24,183.32,181.54,181.5,181.4,182.41,182.44,181.53,179.86,179.9,181.58,185.19,167.32,181.57,167.18,177.01,181.51,180,184.48,187.48,179.98,186.78,183.23,181.72,186.73,167.91,185.86,170.45,180.49,172.76,181.51,182.5,185.27,182.9,171.4,181.48,178.3,178.29,168.08,169.71,182.8,182.78,180,181.69,181.48,181.2,180.8,179.67,167.24,186.87,183.95,178.42,181.4,181.17,181.61,186.83,185.3,175.7,183,181.59,181.3,183.34,180.64,180.3,181.84,185.77,180.85,169.66,180.03,167.03,185.9,185.6,167.43,186.73,184.3,180.92,185.33,183.86,166.75,167.41,184.52,184.51,166.55,186.3,185.1,182.73,184.53,180.77,180.5,181,183.6,180.9,165.8,181.5,171.44,171.46,184.85,186.1,184.62,183.4,166.64,180.27,185.5,181.58,181.65,178.43,181.9,182,180.7,180.6,169.46,182.1,183.8,181.63,184.7,180.21,184.8,169.52,181.06,184.97,181.3,181.75,182.02,179.84,180.89,186.59,167.1,183,181.72,180.49,185.1,186.52,180.67,180.4,179.54,186.36,179.62,182.44,168.93,182.4,166.9,185.3,185.23,183.11,180.9,185.1,184.37,182.44,182.29,185.9,168.63,179.97,185.26,169.44,181.62,185.25,182.65,169.9,180.05,181.23,180.26,179.98,180.48,181.39,185.93,166.56,167.23,186.72,181.41,185.4,171.17,185.17,181.15,167.24,180.78,180.78,181.89,181.7,166.66,169.63,181.37,185.96,174.21,167.02,181.57,167.05,167.01,180.58,181.2,182.43,182.2,181.28,179.77,181.63,184.84,181.4,166.2,166.3,182.69,178.98,169.5,170.04,184.52,177.1,167.11,180.28,166.53,183.78,181.25,180.15,185.8,180.58,185.11,181.27,180,185.86,180.94,181.62,181.42,181.33,179.85,170.52,169.53,182.39,179.97,171.51,185.98,181.51,165.97,169.75,184.47,183.45,182.8,181.44,167.95,184.41,181.61,181.77,182.22,181.02,167.32,182.72,182.54,166.01,185.13,180.21,180.21,185.18,184.75,186.16,181.71,183.99,181.16,181.73,181.01,182.1,182.39,183.99,184.13,182.4,182.32,182.92,184.9,184.49,181.62,178.52,184.5,179.95,180.06,180.26,183.44,184.95,181.2,183.58,184.6,167.44,166.72,184.23,183.95,181.59,180.13,180.74,166.98,184.64,182.38,184.5,184.5,169.05,184.68,185.74,183.71,183.5,182.26,170.7,181.67,170.56,183.6,183.5,187.15,166.93,171.66,170.3,181.3,184.53,181.42,181.42,183.86,181.37,188.1,179.54,167.06,184.2,187.8,170.56],4,null,null,{"interactive":true,"className":"","stroke":false,"color":"white","weight":5,"opacity":0.5,"fill":true,"fillColor":["#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#993404","#FFFFD4","#993404","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#FED98E","#FE9929","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FED98E","#FED98E","#FED98E","#FFFFD4","#FE9929","#FED98E","#D95F0E","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FE9929","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FE9929","#FE9929","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#D95F0E","#FE9929","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FE9929","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#D95F0E","#993404","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FE9929","#D95F0E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#D95F0E","#FE9929","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FE9929","#FE9929","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FED98E","#FED98E","#FED98E","#FFFFD4","#FE9929","#FED98E","#FE9929","#FED98E","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#FED98E","#FED98E","#FE9929","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FE9929","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#D95F0E","#FED98E","#FE9929","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FE9929","#FE9929","#FED98E","#FED98E","#FED98E","#FE9929","#FE9929","#D95F0E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FE9929","#FE9929","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FED98E","#FED98E","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FE9929","#FE9929","#FED98E","#FFFFD4","#FE9929","#FE9929","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FED98E","#FFFFD4","#D95F0E","#FED98E","#FE9929","#FE9929","#D95F0E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FE9929","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FE9929","#FE9929","#FE9929","#FFFFD4","#D95F0E","#FFFFD4","#FE9929","#FED98E","#D95F0E","#FE9929","#FFFFD4","#FE9929","#FE9929","#FE9929","#FE9929","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FE9929","#D95F0E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FE9929","#FED98E","#FFFFD4","#FE9929","#D95F0E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FE9929","#FED98E","#FFFFD4","#FE9929","#FE9929","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#D95F0E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#D95F0E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#D95F0E","#FED98E","#FED98E","#FE9929","#FFFFD4","#FED98E","#D95F0E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FE9929","#FED98E","#D95F0E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FE9929","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#D95F0E","#FED98E","#FED98E","#FED98E","#FED98E","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FE9929","#FED98E","#D95F0E","#FE9929","#FED98E","#FED98E","#FE9929","#FFFFD4","#FED98E","#FED98E","#FED98E","#FE9929","#FE9929","#FED98E","#FFFFD4","#FE9929","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FED98E","#D95F0E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FE9929","#FED98E","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FE9929","#FE9929","#FED98E","#FED98E","#FED98E","#FFFFD4","#FE9929","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#D95F0E","#FFFFD4","#FE9929","#FFFFD4","#FED98E","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#D95F0E","#FFFFD4","#FE9929","#FED98E","#D95F0E","#FFFFD4","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#D95F0E","#FE9929","#FFFFD4","#FE9929","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FED98E","#FED98E","#FED98E","#FE9929","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#FE9929","#FE9929","#FED98E","#FFFFD4","#FED98E","#FED98E","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#D95F0E","#FED98E","#FE9929","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FE9929","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FE9929","#FED98E","#FED98E","#FE9929","#FE9929","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#D95F0E","#FED98E","#FED98E","#FFFFD4","#FE9929","#FE9929","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FE9929","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FE9929","#FFFFD4","#FE9929","#FED98E","#FE9929","#FE9929","#FED98E","#FE9929","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FE9929","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FE9929","#FE9929","#FED98E","#FFFFD4","#FE9929","#FE9929","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FE9929","#FE9929","#FFFFD4","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#D95F0E","#993404","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FE9929","#FED98E","#FED98E","#FE9929","#FE9929","#FE9929","#FED98E","#FFFFD4","#D95F0E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FE9929","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#FED98E","#FFFFD4","#D95F0E","#FE9929","#FE9929","#FFFFD4","#FFFFD4","#FE9929","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FED98E","#FFFFD4","#FED98E","#FED98E","#D95F0E","#FE9929","#FFFFD4","#FE9929","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#D95F0E","#FED98E","#FED98E","#FED98E","#D95F0E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FE9929","#FFFFD4","#FED98E","#FFFFD4","#FED98E","#FE9929","#FFFFD4","#FE9929","#FED98E","#FED98E","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FE9929","#FED98E","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FE9929","#FED98E","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FED98E","#FFFFD4","#FFFFD4","#FFFFD4","#FED98E","#FED98E","#FED98E","#993404"],"fillOpacity":0.7},null,null,null,null,["Depth: 562 Stations: 41 Magnitude: 4.8","Depth: 650 Stations: 15 Magnitude: 4.2","Depth: 42 Stations: 43 Magnitude: 5.4","Depth: 626 Stations: 19 Magnitude: 4.1","Depth: 649 Stations: 11 Magnitude: 4","Depth: 195 Stations: 12 Magnitude: 4","Depth: 82 Stations: 43 Magnitude: 4.8","Depth: 194 Stations: 15 Magnitude: 4.4","Depth: 211 Stations: 35 Magnitude: 4.7","Depth: 622 Stations: 19 Magnitude: 4.3","Depth: 583 Stations: 13 Magnitude: 4.4","Depth: 249 Stations: 16 Magnitude: 4.6","Depth: 554 Stations: 19 Magnitude: 4.4","Depth: 600 Stations: 10 Magnitude: 4.4","Depth: 139 Stations: 94 Magnitude: 6.1","Depth: 306 Stations: 11 Magnitude: 4.3","Depth: 50 Stations: 83 Magnitude: 6","Depth: 590 Stations: 21 Magnitude: 4.5","Depth: 570 Stations: 13 Magnitude: 4.4","Depth: 598 Stations: 18 Magnitude: 4.4","Depth: 576 Stations: 17 Magnitude: 4.5","Depth: 211 Stations: 12 Magnitude: 4.2","Depth: 512 Stations: 18 Magnitude: 4.4","Depth: 125 Stations: 22 Magnitude: 4.7","Depth: 431 Stations: 57 Magnitude: 5.4","Depth: 537 Stations: 15 Magnitude: 4","Depth: 155 Stations: 18 Magnitude: 4.6","Depth: 498 Stations: 79 Magnitude: 5.2","Depth: 582 Stations: 25 Magnitude: 4.5","Depth: 328 Stations: 17 Magnitude: 4.4","Depth: 553 Stations: 21 Magnitude: 4.6","Depth: 50 Stations: 30 Magnitude: 4.7","Depth: 292 Stations: 42 Magnitude: 4.8","Depth: 349 Stations: 10 Magnitude: 4","Depth: 48 Stations: 10 Magnitude: 4.5","Depth: 600 Stations: 13 Magnitude: 4.3","Depth: 206 Stations: 17 Magnitude: 4.5","Depth: 574 Stations: 17 Magnitude: 4.6","Depth: 585 Stations: 17 Magnitude: 4.1","Depth: 230 Stations: 11 Magnitude: 4.4","Depth: 263 Stations: 34 Magnitude: 4.7","Depth: 96 Stations: 32 Magnitude: 4.6","Depth: 511 Stations: 23 Magnitude: 4.4","Depth: 94 Stations: 26 Magnitude: 4.3","Depth: 246 Stations: 27 Magnitude: 4.6","Depth: 56 Stations: 34 Magnitude: 4.9","Depth: 329 Stations: 24 Magnitude: 4.5","Depth: 70 Stations: 18 Magnitude: 4.4","Depth: 493 Stations: 21 Magnitude: 4.3","Depth: 129 Stations: 73 Magnitude: 5.1","Depth: 554 Stations: 13 Magnitude: 4.2","Depth: 223 Stations: 15 Magnitude: 4","Depth: 46 Stations: 26 Magnitude: 4.6","Depth: 593 Stations: 13 Magnitude: 4.3","Depth: 489 Stations: 16 Magnitude: 4.2","Depth: 562 Stations: 31 Magnitude: 4.4","Depth: 445 Stations: 17 Magnitude: 4.5","Depth: 584 Stations: 11 Magnitude: 4","Depth: 535 Stations: 23 Magnitude: 4.4","Depth: 530 Stations: 12 Magnitude: 4.3","Depth: 582 Stations: 35 Magnitude: 4.7","Depth: 260 Stations: 12 Magnitude: 4.1","Depth: 613 Stations: 61 Magnitude: 5","Depth: 84 Stations: 32 Magnitude: 4.6","Depth: 593 Stations: 40 Magnitude: 4.9","Depth: 286 Stations: 25 Magnitude: 4.7","Depth: 587 Stations: 13 Magnitude: 4.1","Depth: 627 Stations: 45 Magnitude: 5","Depth: 530 Stations: 27 Magnitude: 4.5","Depth: 40 Stations: 91 Magnitude: 5.5","Depth: 152 Stations: 11 Magnitude: 4","Depth: 201 Stations: 30 Magnitude: 4.5","Depth: 96 Stations: 14 Magnitude: 4.3","Depth: 506 Stations: 75 Magnitude: 5.2","Depth: 546 Stations: 35 Magnitude: 4.4","Depth: 564 Stations: 15 Magnitude: 4.3","Depth: 197 Stations: 11 Magnitude: 4.1","Depth: 265 Stations: 23 Magnitude: 4.5","Depth: 323 Stations: 15 Magnitude: 4.2","Depth: 304 Stations: 60 Magnitude: 5.3","Depth: 75 Stations: 65 Magnitude: 5.2","Depth: 367 Stations: 27 Magnitude: 4.5","Depth: 579 Stations: 38 Magnitude: 4.6","Depth: 284 Stations: 15 Magnitude: 4.3","Depth: 450 Stations: 11 Magnitude: 4","Depth: 170 Stations: 15 Magnitude: 4.3","Depth: 117 Stations: 32 Magnitude: 4.7","Depth: 538 Stations: 26 Magnitude: 4.5","Depth: 123 Stations: 16 Magnitude: 4.2","Depth: 69 Stations: 42 Magnitude: 4.3","Depth: 128 Stations: 61 Magnitude: 5.1","Depth: 236 Stations: 22 Magnitude: 4.7","Depth: 497 Stations: 64 Magnitude: 5.2","Depth: 271 Stations: 14 Magnitude: 4.2","Depth: 224 Stations: 21 Magnitude: 4.2","Depth: 375 Stations: 18 Magnitude: 4","Depth: 365 Stations: 21 Magnitude: 4.5","Depth: 306 Stations: 54 Magnitude: 5.2","Depth: 50 Stations: 45 Magnitude: 5.1","Depth: 484 Stations: 33 Magnitude: 4.7","Depth: 108 Stations: 12 Magnitude: 4.1","Depth: 583 Stations: 25 Magnitude: 4.6","Depth: 608 Stations: 30 Magnitude: 4.7","Depth: 72 Stations: 22 Magnitude: 4.7","Depth: 636 Stations: 29 Magnitude: 4.6","Depth: 293 Stations: 15 Magnitude: 4.2","Depth: 42 Stations: 25 Magnitude: 4.4","Depth: 100 Stations: 22 Magnitude: 4.6","Depth: 42 Stations: 76 Magnitude: 5.7","Depth: 146 Stations: 35 Magnitude: 5","Depth: 280 Stations: 28 Magnitude: 4.5","Depth: 388 Stations: 14 Magnitude: 4.2","Depth: 477 Stations: 16 Magnitude: 4","Depth: 617 Stations: 39 Magnitude: 4.8","Depth: 606 Stations: 21 Magnitude: 4.4","Depth: 609 Stations: 25 Magnitude: 4.2","Depth: 46 Stations: 67 Magnitude: 5.3","Depth: 64 Stations: 14 Magnitude: 4.7","Depth: 178 Stations: 52 Magnitude: 4.8","Depth: 248 Stations: 13 Magnitude: 4.2","Depth: 82 Stations: 28 Magnitude: 4.8","Depth: 81 Stations: 11 Magnitude: 4.3","Depth: 606 Stations: 27 Magnitude: 4.7","Depth: 571 Stations: 23 Magnitude: 4.5","Depth: 328 Stations: 18 Magnitude: 4.4","Depth: 49 Stations: 43 Magnitude: 5.1","Depth: 517 Stations: 21 Magnitude: 4.2","Depth: 600 Stations: 69 Magnitude: 5","Depth: 94 Stations: 59 Magnitude: 4.8","Depth: 307 Stations: 19 Magnitude: 4.3","Depth: 189 Stations: 22 Magnitude: 4.5","Depth: 527 Stations: 24 Magnitude: 4.2","Depth: 63 Stations: 21 Magnitude: 4.5","Depth: 510 Stations: 30 Magnitude: 4.6","Depth: 624 Stations: 14 Magnitude: 4.3","Depth: 53 Stations: 12 Magnitude: 4.7","Depth: 42 Stations: 68 Magnitude: 5.1","Depth: 199 Stations: 14 Magnitude: 4.6","Depth: 149 Stations: 31 Magnitude: 4.9","Depth: 210 Stations: 17 Magnitude: 4.2","Depth: 658 Stations: 43 Magnitude: 4.6","Depth: 582 Stations: 14 Magnitude: 4","Depth: 220 Stations: 46 Magnitude: 5","Depth: 205 Stations: 34 Magnitude: 4.4","Depth: 614 Stations: 23 Magnitude: 4.2","Depth: 186 Stations: 10 Magnitude: 4.2","Depth: 97 Stations: 22 Magnitude: 4.4","Depth: 48 Stations: 42 Magnitude: 4.9","Depth: 462 Stations: 63 Magnitude: 5.3","Depth: 573 Stations: 19 Magnitude: 4","Depth: 56 Stations: 106 Magnitude: 5.7","Depth: 127 Stations: 122 Magnitude: 6.4","Depth: 229 Stations: 24 Magnitude: 4.3","Depth: 112 Stations: 20 Magnitude: 4.2","Depth: 140 Stations: 16 Magnitude: 4.7","Depth: 597 Stations: 39 Magnitude: 4.7","Depth: 69 Stations: 14 Magnitude: 4.2","Depth: 452 Stations: 19 Magnitude: 4.3","Depth: 93 Stations: 31 Magnitude: 4.9","Depth: 103 Stations: 30 Magnitude: 4.6","Depth: 626 Stations: 19 Magnitude: 4.1","Depth: 504 Stations: 34 Magnitude: 4.8","Depth: 202 Stations: 30 Magnitude: 4.6","Depth: 42 Stations: 32 Magnitude: 4.6","Depth: 59 Stations: 35 Magnitude: 4.8","Depth: 40 Stations: 37 Magnitude: 5","Depth: 205 Stations: 98 Magnitude: 5.6","Depth: 244 Stations: 73 Magnitude: 5.3","Depth: 553 Stations: 41 Magnitude: 4.7","Depth: 239 Stations: 27 Magnitude: 4.5","Depth: 640 Stations: 24 Magnitude: 4.3","Depth: 434 Stations: 41 Magnitude: 4.6","Depth: 627 Stations: 11 Magnitude: 4.1","Depth: 99 Stations: 14 Magnitude: 4.1","Depth: 399 Stations: 10 Magnitude: 4.1","Depth: 216 Stations: 90 Magnitude: 5.7","Depth: 544 Stations: 50 Magnitude: 5","Depth: 206 Stations: 22 Magnitude: 4.5","Depth: 542 Stations: 20 Magnitude: 4.1","Depth: 339 Stations: 27 Magnitude: 4.6","Depth: 640 Stations: 47 Magnitude: 4.5","Depth: 67 Stations: 25 Magnitude: 4.3","Depth: 161 Stations: 17 Magnitude: 4.4","Depth: 375 Stations: 15 Magnitude: 4.2","Depth: 534 Stations: 14 Magnitude: 4.1","Depth: 45 Stations: 62 Magnitude: 4.9","Depth: 309 Stations: 11 Magnitude: 4.3","Depth: 576 Stations: 54 Magnitude: 4.9","Depth: 523 Stations: 24 Magnitude: 4.6","Depth: 290 Stations: 29 Magnitude: 4.6","Depth: 234 Stations: 71 Magnitude: 5.3","Depth: 223 Stations: 35 Magnitude: 4.7","Depth: 569 Stations: 12 Magnitude: 4.6","Depth: 605 Stations: 21 Magnitude: 4.1","Depth: 422 Stations: 41 Magnitude: 4.6","Depth: 637 Stations: 23 Magnitude: 4.2","Depth: 204 Stations: 27 Magnitude: 4.6","Depth: 175 Stations: 14 Magnitude: 4.5","Depth: 538 Stations: 31 Magnitude: 4.3","Depth: 595 Stations: 74 Magnitude: 5.2","Depth: 360 Stations: 23 Magnitude: 4.3","Depth: 445 Stations: 12 Magnitude: 4","Depth: 367 Stations: 35 Magnitude: 4.7","Depth: 190 Stations: 36 Magnitude: 4.5","Depth: 629 Stations: 19 Magnitude: 4.5","Depth: 261 Stations: 13 Magnitude: 4.3","Depth: 603 Stations: 66 Magnitude: 5.2","Depth: 508 Stations: 14 Magnitude: 4.5","Depth: 350 Stations: 32 Magnitude: 4.7","Depth: 533 Stations: 11 Magnitude: 4.2","Depth: 411 Stations: 42 Magnitude: 4.7","Depth: 338 Stations: 13 Magnitude: 4.3","Depth: 226 Stations: 19 Magnitude: 4.1","Depth: 93 Stations: 85 Magnitude: 5.4","Depth: 535 Stations: 22 Magnitude: 4.3","Depth: 573 Stations: 21 Magnitude: 4.3","Depth: 186 Stations: 17 Magnitude: 4.2","Depth: 618 Stations: 41 Magnitude: 4.6","Depth: 242 Stations: 29 Magnitude: 4.4","Depth: 342 Stations: 14 Magnitude: 4.2","Depth: 90 Stations: 30 Magnitude: 4.7","Depth: 130 Stations: 39 Magnitude: 4.6","Depth: 65 Stations: 48 Magnitude: 4.9","Depth: 397 Stations: 22 Magnitude: 4.2","Depth: 505 Stations: 26 Magnitude: 4.5","Depth: 71 Stations: 52 Magnitude: 4.9","Depth: 207 Stations: 18 Magnitude: 4.2","Depth: 154 Stations: 22 Magnitude: 4.5","Depth: 232 Stations: 55 Magnitude: 5","Depth: 106 Stations: 43 Magnitude: 5","Depth: 664 Stations: 34 Magnitude: 4.7","Depth: 397 Stations: 24 Magnitude: 4.3","Depth: 431 Stations: 16 Magnitude: 4.4","Depth: 57 Stations: 31 Magnitude: 4.9","Depth: 525 Stations: 15 Magnitude: 4.5","Depth: 574 Stations: 12 Magnitude: 4","Depth: 74 Stations: 20 Magnitude: 4.4","Depth: 617 Stations: 63 Magnitude: 5","Depth: 44 Stations: 27 Magnitude: 4.7","Depth: 470 Stations: 41 Magnitude: 4.8","Depth: 298 Stations: 33 Magnitude: 4.5","Depth: 148 Stations: 16 Magnitude: 4.1","Depth: 48 Stations: 16 Magnitude: 5.3","Depth: 107 Stations: 52 Magnitude: 4.8","Depth: 218 Stations: 52 Magnitude: 5","Depth: 597 Stations: 28 Magnitude: 4.6","Depth: 619 Stations: 26 Magnitude: 4.3","Depth: 46 Stations: 18 Magnitude: 4.7","Depth: 553 Stations: 61 Magnitude: 5.3","Depth: 150 Stations: 12 Magnitude: 4.2","Depth: 180 Stations: 26 Magnitude: 4.7","Depth: 97 Stations: 26 Magnitude: 4.5","Depth: 587 Stations: 47 Magnitude: 5.1","Depth: 106 Stations: 38 Magnitude: 4.9","Depth: 179 Stations: 19 Magnitude: 4.4","Depth: 680 Stations: 22 Magnitude: 4.2","Depth: 304 Stations: 34 Magnitude: 4.6","Depth: 254 Stations: 35 Magnitude: 4.7","Depth: 521 Stations: 23 Magnitude: 4.2","Depth: 526 Stations: 43 Magnitude: 4.9","Depth: 270 Stations: 72 Magnitude: 5.1","Depth: 548 Stations: 32 Magnitude: 4.7","Depth: 158 Stations: 10 Magnitude: 4.4","Depth: 562 Stations: 27 Magnitude: 4.4","Depth: 300 Stations: 16 Magnitude: 4.2","Depth: 65 Stations: 37 Magnitude: 4.9","Depth: 130 Stations: 16 Magnitude: 4.6","Depth: 82 Stations: 14 Magnitude: 4.4","Depth: 482 Stations: 37 Magnitude: 4.6","Depth: 607 Stations: 23 Magnitude: 4.5","Depth: 105 Stations: 15 Magnitude: 4.4","Depth: 590 Stations: 35 Magnitude: 4.9","Depth: 498 Stations: 12 Magnitude: 4.1","Depth: 504 Stations: 11 Magnitude: 4.2","Depth: 577 Stations: 104 Magnitude: 5.7","Depth: 529 Stations: 25 Magnitude: 4.6","Depth: 528 Stations: 59 Magnitude: 5","Depth: 492 Stations: 16 Magnitude: 4.3","Depth: 561 Stations: 19 Magnitude: 4.5","Depth: 579 Stations: 56 Magnitude: 5.2","Depth: 413 Stations: 22 Magnitude: 4.4","Depth: 565 Stations: 12 Magnitude: 4.2","Depth: 138 Stations: 17 Magnitude: 4.6","Depth: 383 Stations: 10 Magnitude: 4","Depth: 260 Stations: 21 Magnitude: 4.4","Depth: 522 Stations: 29 Magnitude: 4.7","Depth: 671 Stations: 16 Magnitude: 4.2","Depth: 123 Stations: 36 Magnitude: 4.7","Depth: 572 Stations: 26 Magnitude: 4.5","Depth: 529 Stations: 50 Magnitude: 5","Depth: 641 Stations: 49 Magnitude: 5","Depth: 67 Stations: 18 Magnitude: 4.8","Depth: 546 Stations: 31 Magnitude: 4.6","Depth: 507 Stations: 35 Magnitude: 4.6","Depth: 158 Stations: 57 Magnitude: 5","Depth: 148 Stations: 47 Magnitude: 5","Depth: 562 Stations: 80 Magnitude: 5.6","Depth: 601 Stations: 16 Magnitude: 4","Depth: 175 Stations: 16 Magnitude: 4","Depth: 260 Stations: 23 Magnitude: 4.6","Depth: 654 Stations: 22 Magnitude: 4.4","Depth: 242 Stations: 40 Magnitude: 4.8","Depth: 126 Stations: 30 Magnitude: 4.7","Depth: 555 Stations: 15 Magnitude: 4.6","Depth: 637 Stations: 21 Magnitude: 4.3","Depth: 500 Stations: 29 Magnitude: 4.7","Depth: 515 Stations: 19 Magnitude: 4.1","Depth: 583 Stations: 20 Magnitude: 4.9","Depth: 501 Stations: 36 Magnitude: 4.6","Depth: 55 Stations: 26 Magnitude: 4.8","Depth: 644 Stations: 68 Magnitude: 4.9","Depth: 641 Stations: 57 Magnitude: 5.1","Depth: 442 Stations: 82 Magnitude: 5.4","Depth: 464 Stations: 21 Magnitude: 4.5","Depth: 200 Stations: 54 Magnitude: 4.9","Depth: 479 Stations: 14 Magnitude: 4.4","Depth: 497 Stations: 13 Magnitude: 4.1","Depth: 218 Stations: 53 Magnitude: 5.3","Depth: 492 Stations: 25 Magnitude: 4.5","Depth: 325 Stations: 26 Magnitude: 4.9","Depth: 123 Stations: 28 Magnitude: 4.8","Depth: 210 Stations: 69 Magnitude: 5.2","Depth: 575 Stations: 23 Magnitude: 4.4","Depth: 129 Stations: 14 Magnitude: 4.4","Depth: 74 Stations: 55 Magnitude: 4.9","Depth: 49 Stations: 11 Magnitude: 4.4","Depth: 483 Stations: 10 Magnitude: 4.2","Depth: 93 Stations: 20 Magnitude: 4.6","Depth: 118 Stations: 15 Magnitude: 4.6","Depth: 83 Stations: 55 Magnitude: 5.3","Depth: 61 Stations: 42 Magnitude: 5.3","Depth: 534 Stations: 11 Magnitude: 4.5","Depth: 42 Stations: 11 Magnitude: 4.4","Depth: 219 Stations: 28 Magnitude: 5","Depth: 544 Stations: 58 Magnitude: 5.1","Depth: 56 Stations: 14 Magnitude: 4.5","Depth: 68 Stations: 26 Magnitude: 4.5","Depth: 69 Stations: 68 Magnitude: 5.4","Depth: 45 Stations: 16 Magnitude: 4.5","Depth: 43 Stations: 17 Magnitude: 4.7","Depth: 65 Stations: 14 Magnitude: 4.2","Depth: 80 Stations: 13 Magnitude: 4.8","Depth: 51 Stations: 13 Magnitude: 4.5","Depth: 68 Stations: 12 Magnitude: 4.3","Depth: 69 Stations: 14 Magnitude: 4.3","Depth: 103 Stations: 11 Magnitude: 4.3","Depth: 61 Stations: 11 Magnitude: 4.6","Depth: 69 Stations: 12 Magnitude: 4.5","Depth: 51 Stations: 29 Magnitude: 5","Depth: 55 Stations: 10 Magnitude: 4.6","Depth: 54 Stations: 15 Magnitude: 4.6","Depth: 59 Stations: 27 Magnitude: 4.9","Depth: 573 Stations: 17 Magnitude: 4.1","Depth: 56 Stations: 68 Magnitude: 5.5","Depth: 65 Stations: 21 Magnitude: 4.7","Depth: 587 Stations: 49 Magnitude: 5","Depth: 150 Stations: 49 Magnitude: 5.1","Depth: 403 Stations: 82 Magnitude: 5.5","Depth: 60 Stations: 21 Magnitude: 4.6","Depth: 130 Stations: 19 Magnitude: 4.7","Depth: 590 Stations: 14 Magnitude: 4.2","Depth: 135 Stations: 22 Magnitude: 4","Depth: 583 Stations: 67 Magnitude: 5.4","Depth: 406 Stations: 19 Magnitude: 4.3","Depth: 221 Stations: 16 Magnitude: 4.4","Depth: 40 Stations: 22 Magnitude: 4.6","Depth: 502 Stations: 48 Magnitude: 5.1","Depth: 103 Stations: 14 Magnitude: 4.5","Depth: 423 Stations: 21 Magnitude: 4.2","Depth: 158 Stations: 20 Magnitude: 4.1","Depth: 527 Stations: 49 Magnitude: 5.1","Depth: 219 Stations: 105 Magnitude: 5.4","Depth: 536 Stations: 61 Magnitude: 5.1","Depth: 630 Stations: 54 Magnitude: 5.1","Depth: 249 Stations: 21 Magnitude: 4.4","Depth: 48 Stations: 123 Magnitude: 5.7","Depth: 553 Stations: 14 Magnitude: 4.4","Depth: 112 Stations: 57 Magnitude: 5.1","Depth: 153 Stations: 31 Magnitude: 4.6","Depth: 130 Stations: 95 Magnitude: 5.5","Depth: 188 Stations: 68 Magnitude: 5.1","Depth: 226 Stations: 26 Magnitude: 4.4","Depth: 124 Stations: 25 Magnitude: 5","Depth: 204 Stations: 49 Magnitude: 5","Depth: 605 Stations: 49 Magnitude: 5.1","Depth: 221 Stations: 63 Magnitude: 5.1","Depth: 573 Stations: 14 Magnitude: 4.2","Depth: 401 Stations: 39 Magnitude: 4.5","Depth: 195 Stations: 14 Magnitude: 4","Depth: 56 Stations: 36 Magnitude: 4.9","Depth: 102 Stations: 21 Magnitude: 4.3","Depth: 44 Stations: 27 Magnitude: 4.8","Depth: 556 Stations: 21 Magnitude: 4.4","Depth: 417 Stations: 14 Magnitude: 4.2","Depth: 591 Stations: 45 Magnitude: 4.9","Depth: 646 Stations: 21 Magnitude: 4.2","Depth: 565 Stations: 89 Magnitude: 5.3","Depth: 52 Stations: 30 Magnitude: 5","Depth: 535 Stations: 112 Magnitude: 5.7","Depth: 641 Stations: 93 Magnitude: 5.3","Depth: 41 Stations: 24 Magnitude: 4.7","Depth: 109 Stations: 36 Magnitude: 4.6","Depth: 40 Stations: 17 Magnitude: 4.3","Depth: 548 Stations: 65 Magnitude: 5.4","Depth: 118 Stations: 30 Magnitude: 4.4","Depth: 593 Stations: 16 Magnitude: 4.3","Depth: 492 Stations: 23 Magnitude: 4.3","Depth: 123 Stations: 28 Magnitude: 4.7","Depth: 475 Stations: 26 Magnitude: 4.4","Depth: 153 Stations: 21 Magnitude: 4.2","Depth: 112 Stations: 35 Magnitude: 4.5","Depth: 99 Stations: 57 Magnitude: 4.8","Depth: 66 Stations: 37 Magnitude: 4.8","Depth: 481 Stations: 15 Magnitude: 4.3","Depth: 139 Stations: 15 Magnitude: 4.4","Depth: 211 Stations: 51 Magnitude: 5.1","Depth: 151 Stations: 17 Magnitude: 4.4","Depth: 211 Stations: 40 Magnitude: 4.4","Depth: 246 Stations: 23 Magnitude: 4.3","Depth: 47 Stations: 19 Magnitude: 4.8","Depth: 484 Stations: 27 Magnitude: 4.3","Depth: 119 Stations: 29 Magnitude: 4.5","Depth: 70 Stations: 22 Magnitude: 4.1","Depth: 579 Stations: 58 Magnitude: 5.1","Depth: 57 Stations: 44 Magnitude: 4.7","Depth: 176 Stations: 28 Magnitude: 4.6","Depth: 602 Stations: 44 Magnitude: 4.7","Depth: 488 Stations: 12 Magnitude: 4.6","Depth: 149 Stations: 15 Magnitude: 4.4","Depth: 546 Stations: 23 Magnitude: 4.2","Depth: 343 Stations: 10 Magnitude: 4.1","Depth: 530 Stations: 22 Magnitude: 4.7","Depth: 563 Stations: 17 Magnitude: 4","Depth: 537 Stations: 33 Magnitude: 4.8","Depth: 325 Stations: 19 Magnitude: 4.4","Depth: 80 Stations: 14 Magnitude: 4.3","Depth: 259 Stations: 21 Magnitude: 4.4","Depth: 476 Stations: 10 Magnitude: 4.5","Depth: 499 Stations: 29 Magnitude: 4.5","Depth: 257 Stations: 30 Magnitude: 4.7","Depth: 165 Stations: 18 Magnitude: 4.3","Depth: 136 Stations: 29 Magnitude: 4.7","Depth: 146 Stations: 33 Magnitude: 4.8","Depth: 524 Stations: 14 Magnitude: 4.6","Depth: 82 Stations: 68 Magnitude: 5.1","Depth: 90 Stations: 19 Magnitude: 4.7","Depth: 138 Stations: 21 Magnitude: 4.3","Depth: 499 Stations: 91 Magnitude: 5.1","Depth: 538 Stations: 104 Magnitude: 5.5","Depth: 467 Stations: 25 Magnitude: 4.5","Depth: 184 Stations: 11 Magnitude: 4.3","Depth: 538 Stations: 21 Magnitude: 4.3","Depth: 45 Stations: 23 Magnitude: 4.7","Depth: 237 Stations: 18 Magnitude: 4.3","Depth: 162 Stations: 20 Magnitude: 4.3","Depth: 136 Stations: 20 Magnitude: 4.6","Depth: 604 Stations: 23 Magnitude: 4.5","Depth: 107 Stations: 15 Magnitude: 4.5","Depth: 538 Stations: 87 Magnitude: 5.4","Depth: 639 Stations: 39 Magnitude: 4.6","Depth: 45 Stations: 11 Magnitude: 4.4","Depth: 636 Stations: 100 Magnitude: 5","Depth: 628 Stations: 72 Magnitude: 5.2","Depth: 632 Stations: 15 Magnitude: 4.4","Depth: 215 Stations: 51 Magnitude: 5.1","Depth: 556 Stations: 17 Magnitude: 4.4","Depth: 135 Stations: 21 Magnitude: 4.4","Depth: 297 Stations: 25 Magnitude: 4.8","Depth: 568 Stations: 22 Magnitude: 4.4","Depth: 168 Stations: 39 Magnitude: 4.7","Depth: 269 Stations: 31 Magnitude: 4.7","Depth: 143 Stations: 29 Magnitude: 4.4","Depth: 95 Stations: 12 Magnitude: 4.3","Depth: 142 Stations: 40 Magnitude: 5","Depth: 104 Stations: 19 Magnitude: 4.5","Depth: 169 Stations: 27 Magnitude: 4.6","Depth: 65 Stations: 65 Magnitude: 5.4","Depth: 54 Stations: 23 Magnitude: 4.6","Depth: 474 Stations: 13 Magnitude: 4.5","Depth: 125 Stations: 13 Magnitude: 4.4","Depth: 617 Stations: 18 Magnitude: 4.5","Depth: 294 Stations: 10 Magnitude: 4.1","Depth: 180 Stations: 13 Magnitude: 4","Depth: 47 Stations: 39 Magnitude: 4.9","Depth: 593 Stations: 13 Magnitude: 4.1","Depth: 94 Stations: 79 Magnitude: 5.2","Depth: 201 Stations: 41 Magnitude: 4.4","Depth: 537 Stations: 11 Magnitude: 4.1","Depth: 594 Stations: 43 Magnitude: 4.9","Depth: 638 Stations: 20 Magnitude: 4.6","Depth: 80 Stations: 17 Magnitude: 4.5","Depth: 211 Stations: 30 Magnitude: 4.8","Depth: 520 Stations: 19 Magnitude: 4.2","Depth: 384 Stations: 23 Magnitude: 4.2","Depth: 223 Stations: 15 Magnitude: 4.1","Depth: 54 Stations: 71 Magnitude: 5.5","Depth: 57 Stations: 19 Magnitude: 4.4","Depth: 49 Stations: 20 Magnitude: 4.8","Depth: 508 Stations: 23 Magnitude: 4.2","Depth: 242 Stations: 36 Magnitude: 4.8","Depth: 62 Stations: 46 Magnitude: 4.9","Depth: 63 Stations: 19 Magnitude: 4.6","Depth: 203 Stations: 34 Magnitude: 4.5","Depth: 132 Stations: 24 Magnitude: 4.4","Depth: 543 Stations: 28 Magnitude: 4.6","Depth: 589 Stations: 19 Magnitude: 4.2","Depth: 51 Stations: 28 Magnitude: 4.7","Depth: 45 Stations: 51 Magnitude: 4.4","Depth: 63 Stations: 51 Magnitude: 4.5","Depth: 485 Stations: 48 Magnitude: 4.9","Depth: 66 Stations: 34 Magnitude: 4.7","Depth: 58 Stations: 92 Magnitude: 5.5","Depth: 70 Stations: 30 Magnitude: 4.7","Depth: 541 Stations: 32 Magnitude: 4.6","Depth: 598 Stations: 14 Magnitude: 4.1","Depth: 50 Stations: 28 Magnitude: 4.7","Depth: 102 Stations: 21 Magnitude: 4.6","Depth: 144 Stations: 25 Magnitude: 4.3","Depth: 58 Stations: 20 Magnitude: 4.4","Depth: 460 Stations: 44 Magnitude: 4.7","Depth: 69 Stations: 25 Magnitude: 4.3","Depth: 570 Stations: 22 Magnitude: 4.1","Depth: 70 Stations: 30 Magnitude: 4.7","Depth: 137 Stations: 16 Magnitude: 4.5","Depth: 41 Stations: 81 Magnitude: 5.5","Depth: 586 Stations: 17 Magnitude: 4.5","Depth: 140 Stations: 44 Magnitude: 4.6","Depth: 213 Stations: 70 Magnitude: 5.1","Depth: 393 Stations: 28 Magnitude: 4.4","Depth: 51 Stations: 35 Magnitude: 4.7","Depth: 64 Stations: 73 Magnitude: 5.5","Depth: 45 Stations: 39 Magnitude: 4.6","Depth: 296 Stations: 16 Magnitude: 4","Depth: 50 Stations: 24 Magnitude: 4.6","Depth: 44 Stations: 34 Magnitude: 4.8","Depth: 68 Stations: 36 Magnitude: 4.7","Depth: 549 Stations: 33 Magnitude: 4.7","Depth: 150 Stations: 20 Magnitude: 4.2","Depth: 47 Stations: 87 Magnitude: 5.4","Depth: 543 Stations: 34 Magnitude: 4.6","Depth: 40 Stations: 86 Magnitude: 5.5","Depth: 100 Stations: 15 Magnitude: 4.2","Depth: 85 Stations: 22 Magnitude: 4.5","Depth: 98 Stations: 21 Magnitude: 4.5","Depth: 58 Stations: 20 Magnitude: 4.8","Depth: 125 Stations: 18 Magnitude: 4.6","Depth: 89 Stations: 80 Magnitude: 5.4","Depth: 590 Stations: 34 Magnitude: 4.6","Depth: 49 Stations: 30 Magnitude: 5","Depth: 543 Stations: 17 Magnitude: 4.3","Depth: 506 Stations: 24 Magnitude: 4.3","Depth: 40 Stations: 38 Magnitude: 4.8","Depth: 42 Stations: 23 Magnitude: 4.7","Depth: 76 Stations: 36 Magnitude: 4.7","Depth: 63 Stations: 27 Magnitude: 4.8","Depth: 104 Stations: 17 Magnitude: 4.2","Depth: 93 Stations: 16 Magnitude: 4.2","Depth: 64 Stations: 118 Magnitude: 5.9","Depth: 587 Stations: 28 Magnitude: 4.6","Depth: 83 Stations: 25 Magnitude: 4.5","Depth: 579 Stations: 49 Magnitude: 4.9","Depth: 40 Stations: 17 Magnitude: 4.7","Depth: 62 Stations: 25 Magnitude: 4.9","Depth: 273 Stations: 78 Magnitude: 5.3","Depth: 393 Stations: 21 Magnitude: 4.2","Depth: 264 Stations: 23 Magnitude: 4.2","Depth: 174 Stations: 18 Magnitude: 4.5","Depth: 574 Stations: 67 Magnitude: 5.2","Depth: 309 Stations: 23 Magnitude: 4.5","Depth: 75 Stations: 79 Magnitude: 5.6","Depth: 195 Stations: 87 Magnitude: 5.2","Depth: 44 Stations: 35 Magnitude: 4.8","Depth: 420 Stations: 29 Magnitude: 4.5","Depth: 63 Stations: 28 Magnitude: 5","Depth: 609 Stations: 26 Magnitude: 4.4","Depth: 40 Stations: 18 Magnitude: 4.5","Depth: 575 Stations: 42 Magnitude: 4.6","Depth: 559 Stations: 24 Magnitude: 4.5","Depth: 405 Stations: 74 Magnitude: 5.2","Depth: 70 Stations: 54 Magnitude: 5.1","Depth: 41 Stations: 42 Magnitude: 4.8","Depth: 605 Stations: 18 Magnitude: 4.3","Depth: 130 Stations: 55 Magnitude: 5.1","Depth: 577 Stations: 19 Magnitude: 4.7","Depth: 599 Stations: 20 Magnitude: 4.6","Depth: 82 Stations: 51 Magnitude: 4.8","Depth: 50 Stations: 23 Magnitude: 4.6","Depth: 480 Stations: 25 Magnitude: 4.4","Depth: 559 Stations: 27 Magnitude: 4.6","Depth: 566 Stations: 49 Magnitude: 5.1","Depth: 611 Stations: 20 Magnitude: 4.3","Depth: 409 Stations: 19 Magnitude: 4.4","Depth: 209 Stations: 30 Magnitude: 4.7","Depth: 70 Stations: 47 Magnitude: 4.8","Depth: 74 Stations: 15 Magnitude: 4.1","Depth: 134 Stations: 33 Magnitude: 4.6","Depth: 150 Stations: 35 Magnitude: 4.9","Depth: 406 Stations: 17 Magnitude: 4","Depth: 243 Stations: 32 Magnitude: 4.7","Depth: 89 Stations: 32 Magnitude: 4.7","Depth: 53 Stations: 89 Magnitude: 5.2","Depth: 68 Stations: 18 Magnitude: 4.6","Depth: 605 Stations: 34 Magnitude: 4.6","Depth: 615 Stations: 23 Magnitude: 4.9","Depth: 546 Stations: 99 Magnitude: 5.7","Depth: 176 Stations: 26 Magnitude: 4.7","Depth: 52 Stations: 18 Magnitude: 4.4","Depth: 66 Stations: 38 Magnitude: 4.9","Depth: 377 Stations: 43 Magnitude: 4.8","Depth: 186 Stations: 27 Magnitude: 4.6","Depth: 51 Stations: 18 Magnitude: 4.4","Depth: 67 Stations: 35 Magnitude: 4.8","Depth: 234 Stations: 28 Magnitude: 4.7","Depth: 597 Stations: 18 Magnitude: 4.2","Depth: 64 Stations: 54 Magnitude: 5.1","Depth: 511 Stations: 56 Magnitude: 4.8","Depth: 47 Stations: 47 Magnitude: 4.9","Depth: 49 Stations: 49 Magnitude: 5.1","Depth: 546 Stations: 28 Magnitude: 4.3","Depth: 75 Stations: 30 Magnitude: 4.4","Depth: 60 Stations: 33 Magnitude: 4.7","Depth: 278 Stations: 24 Magnitude: 4.7","Depth: 550 Stations: 86 Magnitude: 5.3","Depth: 518 Stations: 71 Magnitude: 5.1","Depth: 116 Stations: 38 Magnitude: 4.9","Depth: 518 Stations: 23 Magnitude: 4.5","Depth: 75 Stations: 41 Magnitude: 4.7","Depth: 491 Stations: 23 Magnitude: 4.2","Depth: 56 Stations: 50 Magnitude: 5.1","Depth: 376 Stations: 57 Magnitude: 4.8","Depth: 584 Stations: 18 Magnitude: 4.2","Depth: 48 Stations: 56 Magnitude: 4.8","Depth: 53 Stations: 20 Magnitude: 4.4","Depth: 617 Stations: 26 Magnitude: 4.5","Depth: 294 Stations: 18 Magnitude: 4.3","Depth: 417 Stations: 129 Magnitude: 5.6","Depth: 280 Stations: 16 Magnitude: 4","Depth: 332 Stations: 36 Magnitude: 5","Depth: 85 Stations: 28 Magnitude: 4.2","Depth: 525 Stations: 31 Magnitude: 4.6","Depth: 613 Stations: 18 Magnitude: 4.6","Depth: 182 Stations: 28 Magnitude: 4.5","Depth: 57 Stations: 32 Magnitude: 5","Depth: 79 Stations: 42 Magnitude: 4.7","Depth: 595 Stations: 36 Magnitude: 4.6","Depth: 164 Stations: 50 Magnitude: 4.8","Depth: 148 Stations: 44 Magnitude: 4.6","Depth: 82 Stations: 17 Magnitude: 4.4","Depth: 153 Stations: 87 Magnitude: 5.6","Depth: 556 Stations: 13 Magnitude: 4.2","Depth: 649 Stations: 88 Magnitude: 5.4","Depth: 651 Stations: 43 Magnitude: 4.8","Depth: 93 Stations: 94 Magnitude: 5.6","Depth: 533 Stations: 27 Magnitude: 4.4","Depth: 642 Stations: 29 Magnitude: 4.7","Depth: 47 Stations: 27 Magnitude: 4.6","Depth: 548 Stations: 79 Magnitude: 5.1","Depth: 154 Stations: 22 Magnitude: 4.6","Depth: 627 Stations: 29 Magnitude: 4.5","Depth: 622 Stations: 23 Magnitude: 4.2","Depth: 286 Stations: 43 Magnitude: 4.8","Depth: 390 Stations: 48 Magnitude: 4.9","Depth: 624 Stations: 105 Magnitude: 5.5","Depth: 539 Stations: 41 Magnitude: 5","Depth: 624 Stations: 21 Magnitude: 4.2","Depth: 631 Stations: 69 Magnitude: 5.2","Depth: 631 Stations: 36 Magnitude: 4.8","Depth: 299 Stations: 30 Magnitude: 4.4","Depth: 498 Stations: 40 Magnitude: 4.8","Depth: 255 Stations: 31 Magnitude: 4.4","Depth: 539 Stations: 12 Magnitude: 4.1","Depth: 195 Stations: 45 Magnitude: 4.9","Depth: 594 Stations: 24 Magnitude: 4.6","Depth: 573 Stations: 32 Magnitude: 4.5","Depth: 128 Stations: 18 Magnitude: 5.3","Depth: 137 Stations: 40 Magnitude: 4.8","Depth: 143 Stations: 41 Magnitude: 4.6","Depth: 511 Stations: 37 Magnitude: 4.8","Depth: 564 Stations: 17 Magnitude: 4.7","Depth: 559 Stations: 50 Magnitude: 4.9","Depth: 248 Stations: 60 Magnitude: 5.3","Depth: 210 Stations: 27 Magnitude: 4.4","Depth: 390 Stations: 33 Magnitude: 4.6","Depth: 616 Stations: 17 Magnitude: 4.3","Depth: 98 Stations: 17 Magnitude: 4.4","Depth: 218 Stations: 27 Magnitude: 4.2","Depth: 655 Stations: 14 Magnitude: 4.1","Depth: 356 Stations: 15 Magnitude: 4.2","Depth: 564 Stations: 64 Magnitude: 5","Depth: 548 Stations: 10 Magnitude: 4.1","Depth: 655 Stations: 20 Magnitude: 4.3","Depth: 385 Stations: 67 Magnitude: 5.2","Depth: 518 Stations: 10 Magnitude: 4.2","Depth: 598 Stations: 36 Magnitude: 4.5","Depth: 476 Stations: 29 Magnitude: 4.4","Depth: 579 Stations: 16 Magnitude: 4.4","Depth: 603 Stations: 65 Magnitude: 5","Depth: 249 Stations: 11 Magnitude: 4","Depth: 208 Stations: 25 Magnitude: 4.8","Depth: 587 Stations: 51 Magnitude: 5","Depth: 221 Stations: 21 Magnitude: 4.2","Depth: 545 Stations: 91 Magnitude: 5.2","Depth: 586 Stations: 68 Magnitude: 5.2","Depth: 488 Stations: 10 Magnitude: 4.5","Depth: 246 Stations: 15 Magnitude: 4.3","Depth: 61 Stations: 19 Magnitude: 4.5","Depth: 524 Stations: 11 Magnitude: 4.6","Depth: 104 Stations: 71 Magnitude: 5.1","Depth: 271 Stations: 36 Magnitude: 4.4","Depth: 487 Stations: 16 Magnitude: 4.3","Depth: 83 Stations: 37 Magnitude: 4.7","Depth: 183 Stations: 109 Magnitude: 5.6","Depth: 55 Stations: 46 Magnitude: 4.9","Depth: 166 Stations: 22 Magnitude: 5.1","Depth: 586 Stations: 13 Magnitude: 4.6","Depth: 618 Stations: 18 Magnitude: 4.4","Depth: 524 Stations: 49 Magnitude: 4.8","Depth: 133 Stations: 17 Magnitude: 4.2","Depth: 201 Stations: 57 Magnitude: 4.7","Depth: 383 Stations: 11 Magnitude: 4.1","Depth: 86 Stations: 33 Magnitude: 4.7","Depth: 555 Stations: 17 Magnitude: 4","Depth: 605 Stations: 43 Magnitude: 4.9","Depth: 609 Stations: 50 Magnitude: 5","Depth: 204 Stations: 16 Magnitude: 4.5","Depth: 287 Stations: 23 Magnitude: 4.4","Depth: 390 Stations: 14 Magnitude: 4","Depth: 348 Stations: 30 Magnitude: 4.5","Depth: 550 Stations: 23 Magnitude: 4.7","Depth: 487 Stations: 20 Magnitude: 4.4","Depth: 578 Stations: 43 Magnitude: 4.7","Depth: 361 Stations: 32 Magnitude: 4.7","Depth: 275 Stations: 14 Magnitude: 4","Depth: 498 Stations: 14 Magnitude: 4.2","Depth: 162 Stations: 18 Magnitude: 4.5","Depth: 78 Stations: 44 Magnitude: 4.7","Depth: 134 Stations: 17 Magnitude: 4.5","Depth: 554 Stations: 15 Magnitude: 4.1","Depth: 608 Stations: 13 Magnitude: 4.6","Depth: 367 Stations: 25 Magnitude: 4.3","Depth: 599 Stations: 30 Magnitude: 4.6","Depth: 45 Stations: 65 Magnitude: 5.2","Depth: 50 Stations: 22 Magnitude: 4.6","Depth: 162 Stations: 36 Magnitude: 4.7","Depth: 302 Stations: 65 Magnitude: 5","Depth: 57 Stations: 49 Magnitude: 5.2","Depth: 203 Stations: 20 Magnitude: 4.4","Depth: 66 Stations: 18 Magnitude: 4.6","Depth: 591 Stations: 18 Magnitude: 4.5","Depth: 440 Stations: 12 Magnitude: 4","Depth: 611 Stations: 20 Magnitude: 4.2","Depth: 57 Stations: 69 Magnitude: 5.3","Depth: 627 Stations: 119 Magnitude: 5.9","Depth: 89 Stations: 42 Magnitude: 4.9","Depth: 500 Stations: 34 Magnitude: 4.5","Depth: 264 Stations: 14 Magnitude: 4.4","Depth: 127 Stations: 75 Magnitude: 5.4","Depth: 85 Stations: 86 Magnitude: 5.3","Depth: 50 Stations: 47 Magnitude: 5.1","Depth: 75 Stations: 20 Magnitude: 4.1","Depth: 182 Stations: 17 Magnitude: 4.3","Depth: 619 Stations: 18 Magnitude: 4.5","Depth: 223 Stations: 10 Magnitude: 4.1","Depth: 156 Stations: 70 Magnitude: 5.1","Depth: 46 Stations: 71 Magnitude: 5.3","Depth: 50 Stations: 29 Magnitude: 4.5","Depth: 230 Stations: 16 Magnitude: 4.1","Depth: 184 Stations: 26 Magnitude: 4.4","Depth: 188 Stations: 24 Magnitude: 4.7","Depth: 80 Stations: 10 Magnitude: 4","Depth: 86 Stations: 61 Magnitude: 5.1","Depth: 391 Stations: 16 Magnitude: 4","Depth: 199 Stations: 21 Magnitude: 4.3","Depth: 592 Stations: 21 Magnitude: 4.3","Depth: 595 Stations: 22 Magnitude: 4","Depth: 618 Stations: 10 Magnitude: 4.1","Depth: 213 Stations: 17 Magnitude: 4.4","Depth: 616 Stations: 10 Magnitude: 4.3","Depth: 175 Stations: 12 Magnitude: 4.2","Depth: 589 Stations: 12 Magnitude: 4","Depth: 83 Stations: 25 Magnitude: 4.5","Depth: 119 Stations: 32 Magnitude: 4.7","Depth: 70 Stations: 48 Magnitude: 5","Depth: 74 Stations: 22 Magnitude: 4.3","Depth: 40 Stations: 54 Magnitude: 5.1","Depth: 87 Stations: 34 Magnitude: 4.7","Depth: 63 Stations: 69 Magnitude: 5.3","Depth: 537 Stations: 63 Magnitude: 5","Depth: 47 Stations: 29 Magnitude: 4.5","Depth: 490 Stations: 77 Magnitude: 5","Depth: 593 Stations: 16 Magnitude: 4.1","Depth: 644 Stations: 27 Magnitude: 4.9","Depth: 576 Stations: 16 Magnitude: 4.1","Depth: 199 Stations: 16 Magnitude: 4","Depth: 589 Stations: 27 Magnitude: 4.4","Depth: 178 Stations: 19 Magnitude: 4.5","Depth: 248 Stations: 33 Magnitude: 4.4","Depth: 500 Stations: 37 Magnitude: 4.5","Depth: 71 Stations: 19 Magnitude: 4.3","Depth: 568 Stations: 36 Magnitude: 4.3","Depth: 42 Stations: 36 Magnitude: 5","Depth: 510 Stations: 37 Magnitude: 4.5","Depth: 97 Stations: 13 Magnitude: 4.5","Depth: 663 Stations: 30 Magnitude: 4.4","Depth: 625 Stations: 35 Magnitude: 4.5","Depth: 210 Stations: 22 Magnitude: 4.1","Depth: 557 Stations: 78 Magnitude: 4.9","Depth: 582 Stations: 27 Magnitude: 4.7","Depth: 402 Stations: 18 Magnitude: 4.3","Depth: 474 Stations: 32 Magnitude: 4.6","Depth: 577 Stations: 43 Magnitude: 4.6","Depth: 56 Stations: 49 Magnitude: 5.2","Depth: 43 Stations: 19 Magnitude: 4.5","Depth: 118 Stations: 11 Magnitude: 4.3","Depth: 544 Stations: 52 Magnitude: 4.6","Depth: 532 Stations: 14 Magnitude: 4","Depth: 237 Stations: 39 Magnitude: 4.5","Depth: 111 Stations: 30 Magnitude: 4.8","Depth: 595 Stations: 30 Magnitude: 4.6","Depth: 603 Stations: 11 Magnitude: 4.1","Depth: 505 Stations: 50 Magnitude: 4.9","Depth: 100 Stations: 40 Magnitude: 4.7","Depth: 587 Stations: 23 Magnitude: 4.1","Depth: 364 Stations: 20 Magnitude: 4.3","Depth: 100 Stations: 17 Magnitude: 4.4","Depth: 350 Stations: 12 Magnitude: 4","Depth: 228 Stations: 15 Magnitude: 4.8","Depth: 93 Stations: 25 Magnitude: 4.4","Depth: 66 Stations: 34 Magnitude: 4.4","Depth: 225 Stations: 21 Magnitude: 4.6","Depth: 334 Stations: 28 Magnitude: 4.2","Depth: 70 Stations: 15 Magnitude: 4.1","Depth: 220 Stations: 18 Magnitude: 4.2","Depth: 397 Stations: 12 Magnitude: 4","Depth: 326 Stations: 15 Magnitude: 4.1","Depth: 121 Stations: 17 Magnitude: 4.1","Depth: 209 Stations: 29 Magnitude: 4.7","Depth: 510 Stations: 44 Magnitude: 4.8","Depth: 54 Stations: 44 Magnitude: 5.1","Depth: 242 Stations: 41 Magnitude: 5","Depth: 574 Stations: 38 Magnitude: 4.8","Depth: 82 Stations: 39 Magnitude: 4.4","Depth: 102 Stations: 36 Magnitude: 5","Depth: 43 Stations: 56 Magnitude: 5.2","Depth: 432 Stations: 19 Magnitude: 4.2","Depth: 580 Stations: 16 Magnitude: 4.1","Depth: 464 Stations: 60 Magnitude: 4.8","Depth: 479 Stations: 27 Magnitude: 4.5","Depth: 581 Stations: 54 Magnitude: 5","Depth: 513 Stations: 81 Magnitude: 5.1","Depth: 77 Stations: 16 Magnitude: 4.1","Depth: 68 Stations: 41 Magnitude: 4.7","Depth: 71 Stations: 59 Magnitude: 5.2","Depth: 68 Stations: 48 Magnitude: 4.8","Depth: 586 Stations: 33 Magnitude: 4.5","Depth: 243 Stations: 11 Magnitude: 4","Depth: 658 Stations: 49 Magnitude: 4.7","Depth: 315 Stations: 15 Magnitude: 4.1","Depth: 210 Stations: 17 Magnitude: 4.3","Depth: 278 Stations: 17 Magnitude: 4.3","Depth: 638 Stations: 14 Magnitude: 4","Depth: 615 Stations: 51 Magnitude: 4.7","Depth: 567 Stations: 27 Magnitude: 4.1","Depth: 560 Stations: 13 Magnitude: 4.2","Depth: 99 Stations: 36 Magnitude: 4.8","Depth: 266 Stations: 31 Magnitude: 4.8","Depth: 397 Stations: 15 Magnitude: 4.2","Depth: 180 Stations: 29 Magnitude: 4.2","Depth: 40 Stations: 78 Magnitude: 5.7","Depth: 242 Stations: 132 Magnitude: 6","Depth: 530 Stations: 20 Magnitude: 4.2","Depth: 133 Stations: 32 Magnitude: 4.5","Depth: 62 Stations: 36 Magnitude: 4.9","Depth: 580 Stations: 22 Magnitude: 4.4","Depth: 530 Stations: 15 Magnitude: 4","Depth: 566 Stations: 20 Magnitude: 4.3","Depth: 501 Stations: 23 Magnitude: 4.2","Depth: 548 Stations: 30 Magnitude: 4.5","Depth: 587 Stations: 31 Magnitude: 4.8","Depth: 592 Stations: 28 Magnitude: 4.4","Depth: 221 Stations: 18 Magnitude: 4.2","Depth: 560 Stations: 12 Magnitude: 4.2","Depth: 94 Stations: 31 Magnitude: 5","Depth: 139 Stations: 15 Magnitude: 4.2","Depth: 162 Stations: 64 Magnitude: 5.2","Depth: 562 Stations: 30 Magnitude: 4.5","Depth: 204 Stations: 35 Magnitude: 4.6","Depth: 56 Stations: 22 Magnitude: 5","Depth: 49 Stations: 52 Magnitude: 5","Depth: 100 Stations: 71 Magnitude: 5.4","Depth: 231 Stations: 28 Magnitude: 4.8","Depth: 601 Stations: 21 Magnitude: 4.2","Depth: 42 Stations: 70 Magnitude: 5.5","Depth: 180 Stations: 25 Magnitude: 4.3","Depth: 559 Stations: 16 Magnitude: 4.1","Depth: 524 Stations: 22 Magnitude: 4.4","Depth: 69 Stations: 74 Magnitude: 4.9","Depth: 594 Stations: 45 Magnitude: 4.5","Depth: 262 Stations: 56 Magnitude: 4.9","Depth: 538 Stations: 33 Magnitude: 4","Depth: 331 Stations: 27 Magnitude: 4.5","Depth: 48 Stations: 40 Magnitude: 5","Depth: 47 Stations: 47 Magnitude: 4.9","Depth: 558 Stations: 31 Magnitude: 4.5","Depth: 524 Stations: 16 Magnitude: 4.2","Depth: 545 Stations: 37 Magnitude: 4.2","Depth: 477 Stations: 34 Magnitude: 4.2","Depth: 129 Stations: 30 Magnitude: 5.2","Depth: 268 Stations: 21 Magnitude: 4.3","Depth: 117 Stations: 43 Magnitude: 5.1","Depth: 541 Stations: 50 Magnitude: 4.6","Depth: 112 Stations: 14 Magnitude: 4.6","Depth: 162 Stations: 36 Magnitude: 4.4","Depth: 609 Stations: 32 Magnitude: 4.4","Depth: 76 Stations: 64 Magnitude: 4.9","Depth: 61 Stations: 40 Magnitude: 5.1","Depth: 202 Stations: 28 Magnitude: 4.2","Depth: 90 Stations: 30 Magnitude: 4.7","Depth: 133 Stations: 14 Magnitude: 4","Depth: 589 Stations: 115 Magnitude: 5.6","Depth: 190 Stations: 81 Magnitude: 5.3","Depth: 138 Stations: 82 Magnitude: 5","Depth: 598 Stations: 27 Magnitude: 4.3","Depth: 600 Stations: 11 Magnitude: 4.1","Depth: 162 Stations: 67 Magnitude: 5.1","Depth: 626 Stations: 36 Magnitude: 4.5","Depth: 137 Stations: 22 Magnitude: 4.9","Depth: 57 Stations: 61 Magnitude: 5.4","Depth: 201 Stations: 40 Magnitude: 4.7","Depth: 69 Stations: 29 Magnitude: 4.8","Depth: 219 Stations: 28 Magnitude: 4.5","Depth: 553 Stations: 23 Magnitude: 4.2","Depth: 524 Stations: 50 Magnitude: 4.6","Depth: 51 Stations: 28 Magnitude: 4.6","Depth: 107 Stations: 121 Magnitude: 5.6","Depth: 44 Stations: 110 Magnitude: 5.4","Depth: 574 Stations: 20 Magnitude: 4","Depth: 128 Stations: 72 Magnitude: 5.2","Depth: 568 Stations: 12 Magnitude: 4.2","Depth: 583 Stations: 57 Magnitude: 4.7","Depth: 622 Stations: 15 Magnitude: 4.3","Depth: 193 Stations: 27 Magnitude: 4.8","Depth: 544 Stations: 30 Magnitude: 4.6","Depth: 118 Stations: 88 Magnitude: 5.4","Depth: 51 Stations: 27 Magnitude: 4.8","Depth: 63 Stations: 22 Magnitude: 4.6","Depth: 442 Stations: 22 Magnitude: 4.2","Depth: 87 Stations: 67 Magnitude: 5.5","Depth: 61 Stations: 16 Magnitude: 4.7","Depth: 60 Stations: 35 Magnitude: 4.7","Depth: 561 Stations: 32 Magnitude: 4.5","Depth: 138 Stations: 78 Magnitude: 5.5","Depth: 174 Stations: 34 Magnitude: 4.5","Depth: 543 Stations: 21 Magnitude: 4.1","Depth: 530 Stations: 23 Magnitude: 4","Depth: 497 Stations: 32 Magnitude: 4.3","Depth: 63 Stations: 27 Magnitude: 4.7","Depth: 82 Stations: 50 Magnitude: 4.9","Depth: 605 Stations: 31 Magnitude: 4.5","Depth: 234 Stations: 55 Magnitude: 4.7","Depth: 41 Stations: 22 Magnitude: 4.5","Depth: 40 Stations: 42 Magnitude: 4.8","Depth: 137 Stations: 20 Magnitude: 4.3","Depth: 223 Stations: 23 Magnitude: 4.1","Depth: 109 Stations: 61 Magnitude: 5.4","Depth: 595 Stations: 26 Magnitude: 4.1","Depth: 512 Stations: 40 Magnitude: 4.8","Depth: 613 Stations: 20 Magnitude: 4.2","Depth: 60 Stations: 25 Magnitude: 4.8","Depth: 43 Stations: 45 Magnitude: 5.4","Depth: 172 Stations: 14 Magnitude: 4.4","Depth: 54 Stations: 74 Magnitude: 5.2","Depth: 68 Stations: 23 Magnitude: 4.7","Depth: 217 Stations: 35 Magnitude: 4.9","Depth: 102 Stations: 27 Magnitude: 4.9","Depth: 178 Stations: 32 Magnitude: 4.2","Depth: 251 Stations: 47 Magnitude: 4.4","Depth: 42 Stations: 17 Magnitude: 4.4","Depth: 575 Stations: 11 Magnitude: 4.3","Depth: 43 Stations: 20 Magnitude: 4.9","Depth: 577 Stations: 67 Magnitude: 5","Depth: 42 Stations: 21 Magnitude: 4.7","Depth: 75 Stations: 49 Magnitude: 4.9","Depth: 71 Stations: 22 Magnitude: 4.3","Depth: 60 Stations: 17 Magnitude: 4.5","Depth: 291 Stations: 16 Magnitude: 4.2","Depth: 125 Stations: 51 Magnitude: 5.2","Depth: 69 Stations: 27 Magnitude: 4.8","Depth: 614 Stations: 12 Magnitude: 4","Depth: 108 Stations: 33 Magnitude: 4.7","Depth: 575 Stations: 18 Magnitude: 4.3","Depth: 409 Stations: 27 Magnitude: 4.3","Depth: 243 Stations: 65 Magnitude: 4.9","Depth: 642 Stations: 17 Magnitude: 4","Depth: 45 Stations: 10 Magnitude: 4.2","Depth: 470 Stations: 22 Magnitude: 4.4","Depth: 248 Stations: 35 Magnitude: 4.7","Depth: 244 Stations: 34 Magnitude: 4.5","Depth: 40 Stations: 14 Magnitude: 4.5","Depth: 165 Stations: 119 Magnitude: 6"],{"interactive":false,"permanent":false,"direction":"auto","opacity":1,"offset":[0,0],"textsize":"13px","textOnly":false,"style":{"font-weight":"normal","padding":"3px 8px"},"className":"","sticky":true},null]},{"method":"addLegend","args":[{"colors":["#FFFFD4","#FED98E","#FE9929","#D95F0E","#993404"],"labels":["4.0 – 4.5","4.5 – 5.0","5.0 – 5.5","5.5 – 6.0","6.0 – 6.5"],"na_color":null,"na_label":"NA","opacity":0.9,"position":"bottomright","type":"bin","title":"Magnitude","extra":null,"layerId":null,"className":"info legend","group":null}]}],"setView":[[-27,170],4,[]],"limits":{"lat":[-38.59,-10.72],"lng":[165.67,188.13]}},"evals":[],"jsHooks":[]}</script>

---

oppure per visualizzare i punti con un diagramma tridimensionale (latitudine, logitudine, profondità) colorando i punti per magnitudine del terremoto:

```r
p <- plot_ly(quakes, x = ~lat, y = ~long, z = ~ -depth, color=~mag, colors="YlOrBr") %>%
 add_markers(size=.01) %>%
 layout(scene = list(xaxis = list(title = 'Latitudine'),
 yaxis = list(title = 'Longitudine'),
 zaxis = list(title = 'Profondità')))
```

---

```r
p
```

<div id="htmlwidget-18d316d7b8b6ac641818" style="width:504px;height:504px;" class="plotly html-widget"></div>
<script type="application/json" data-for="htmlwidget-18d316d7b8b6ac641818">{"x":{"visdat":{"27d95b314f2":["function () ","plotlyVisDat"]},"cur_data":"27d95b314f2","attrs":{"27d95b314f2":{"x":{},"y":{},"z":{},"color":{},"colors":"YlOrBr","alpha_stroke":1,"sizes":[10,100],"spans":[1,20],"type":"scatter3d","mode":"markers","size":0.01,"inherit":true}},"layout":{"margin":{"b":40,"l":60,"t":25,"r":10},"scene":{"xaxis":{"title":"Latitudine"},"yaxis":{"title":"Longitudine"},"zaxis":{"title":"Profondità"}},"hovermode":"closest","showlegend":false,"legend":{"yanchor":"top","y":0.5}},"source":"A","config":{"showSendToCloud":false},"data":[{"x":[-20.42,-20.62,-26,-17.97,-20.42,-19.68,-11.7,-28.11,-28.74,-17.47,-21.44,-12.26,-18.54,-21,-20.7,-15.94,-13.64,-17.83,-23.5,-22.63,-20.84,-10.98,-23.3,-30.2,-19.66,-17.94,-14.72,-16.46,-20.97,-19.84,-22.58,-16.32,-15.55,-23.55,-16.3,-25.82,-18.73,-17.64,-17.66,-18.82,-37.37,-15.31,-24.97,-15.49,-19.23,-30.1,-26.4,-11.77,-24.12,-18.97,-18.75,-19.26,-22.75,-21.37,-20.1,-19.85,-22.7,-22.06,-17.8,-24.2,-20.69,-21.16,-13.82,-11.49,-20.68,-17.1,-20.14,-21.96,-20.42,-15.46,-15.31,-19.86,-11.55,-23.74,-17.7,-23.54,-19.21,-12.11,-21.81,-28.98,-34.02,-23.84,-19.57,-20.12,-17.7,-19.66,-21.5,-23.64,-15.43,-15.41,-15.48,-13.36,-20.64,-19.72,-15.44,-19.73,-27.24,-18.16,-13.66,-24.57,-16.98,-26.2,-21.88,-33,-21.33,-19.44,-34.89,-20.24,-22.55,-36.95,-15.75,-16.85,-19.06,-26.11,-26.2,-26.13,-13.66,-13.47,-14.6,-18.96,-14.65,-19.9,-22.05,-19.22,-31.24,-17.93,-19.3,-26.53,-27.72,-19.19,-17.43,-17.05,-19.52,-23.71,-21.3,-16.24,-16.14,-23.95,-25.2,-18.84,-12.66,-20.65,-13.23,-29.91,-14.31,-20.1,-17.8,-21.27,-23.58,-17.9,-23.34,-15.56,-23.83,-11.8,-15.54,-20.65,-11.75,-24.81,-20.9,-11.34,-17.98,-24.34,-13.86,-35.56,-35.48,-34.2,-26,-19.89,-23.43,-18.89,-17.82,-25.68,-20.2,-15.2,-15.03,-32.22,-22.64,-17.42,-17.84,-15.02,-18.04,-24.6,-19.88,-20.3,-20.45,-17.67,-22.3,-19.85,-24.27,-15.85,-20.02,-18.56,-17.87,-24.08,-32.2,-20.36,-23.85,-24,-20.41,-17.72,-19.67,-17.7,-16.23,-26.72,-12.95,-21.97,-21.96,-20.32,-30.28,-20.2,-30.66,-16.17,-28.25,-20.47,-23.55,-20.94,-26.67,-18.13,-20.21,-18.31,-16.52,-22.36,-22.43,-20.37,-23.77,-13.65,-21.55,-16.24,-23.73,-22.34,-19.4,-24.64,-16,-19.62,-23.84,-23.54,-28.23,-21.68,-13.44,-24.96,-20.08,-24.36,-14.7,-18.2,-16.65,-18.11,-17.95,-15.5,-23.36,-19.15,-10.97,-14.85,-17.8,-22.5,-29.1,-20.32,-16.09,-19.18,-23.81,-23.79,-19.02,-20.9,-19.06,-17.88,-19.41,-26.17,-14.95,-18.73,-20.21,-21.29,-19.76,-22.09,-23.8,-20.16,-22.13,-17.44,-23.33,-24.78,-22,-19.13,-30.72,-22.32,-16.45,-17.7,-17.95,-24.4,-19.3,-21.13,-18.07,-20.6,-18.48,-13.34,-20.92,-25.31,-15.24,-16.4,-24.57,-17.94,-30.64,-18.64,-13.09,-19.68,-16.44,-21.09,-14.99,-23.3,-17.68,-22,-21.38,-32.62,-13.05,-12.93,-18.6,-21.34,-21.48,-17.4,-17.32,-18.77,-26.16,-12.59,-14.82,-21.79,-19.83,-29.5,-12.49,-26.1,-21.04,-10.78,-20.76,-11.41,-19.1,-23.91,-27.33,-12.25,-23.49,-27.18,-25.8,-27.19,-27.27,-27.1,-27.22,-27.38,-27.27,-27.54,-27.2,-27.71,-27.6,-27.38,-21.54,-27.21,-28.96,-12.01,-17.46,-30.17,-27.27,-17.79,-22.19,-17.1,-27.18,-11.64,-17.98,-16.9,-21.98,-32.14,-18.8,-26.78,-20.43,-18.3,-15.83,-23.44,-23.73,-19.89,-17.59,-19.77,-20.31,-15.33,-18.2,-15.36,-15.29,-15.36,-16.24,-13.47,-25.5,-14.32,-20.04,-28.83,-17.82,-27.23,-10.72,-27,-20.36,-27.17,-20.94,-17.46,-21.04,-23.7,-17.72,-15.87,-17.84,-13.45,-30.8,-11.63,-30.4,-26.18,-15.7,-17.95,-20.51,-15.36,-23.61,-33.2,-17.68,-22.24,-20.07,-25.04,-21.5,-14.28,-14.43,-32.7,-34.1,-19.7,-24.19,-26.6,-17.04,-22.1,-32.6,-33,-20.58,-20.61,-19.47,-17.47,-18.4,-23.33,-18.55,-26.16,-21.8,-27.63,-18.89,-20.3,-20.56,-16.1,-12.66,-21.05,-17.97,-19.83,-22.55,-22.28,-15.72,-20.85,-21.11,-25.31,-26.46,-24.09,-16.96,-23.19,-20.81,-15.03,-18.06,-19,-23.53,-18.18,-15.66,-18,-18.08,-18.05,-29.9,-20.9,-15.61,-16.03,-17.68,-31.94,-19.14,-18,-16.95,-10.79,-20.83,-32.9,-37.93,-29.09,-23.56,-19.6,-21.39,-14.85,-22.7,-32.42,-17.9,-23.58,-34.4,-17.61,-21.07,-13.84,-30.24,-18.49,-23.45,-16.04,-17.14,-22.54,-15.9,-30.04,-24.03,-18.89,-16.51,-20.1,-21.06,-13.07,-23.46,-19.41,-11.81,-11.76,-12.08,-25.59,-26.54,-20.9,-16.99,-23.46,-17.81,-15.17,-11.67,-20.75,-19.5,-26.18,-20.66,-19.22,-24.68,-15.43,-32.45,-21.31,-15.44,-13.26,-15.26,-33.57,-15.77,-15.79,-21,-16.28,-23.28,-16.1,-17.7,-15.96,-15.95,-17.56,-15.9,-15.29,-15.86,-16.2,-15.71,-16.45,-11.54,-19.61,-15.61,-21.16,-20.65,-20.33,-15.08,-23.28,-23.44,-23.12,-23.65,-22.91,-22.06,-13.56,-17.99,-23.92,-30.69,-21.92,-25.04,-19.92,-27.75,-17.71,-19.6,-34.68,-14.46,-18.85,-17.02,-20.41,-18.18,-16.49,-17.74,-20.49,-18.51,-27.28,-15.9,-20.57,-11.25,-20.04,-20.89,-16.62,-20.09,-24.96,-20.95,-23.31,-20.95,-21.58,-13.62,-12.72,-21.79,-20.48,-12.84,-17.02,-23.89,-23.07,-27.98,-28.1,-21.24,-21.24,-19.89,-32.82,-22,-21.57,-24.5,-33.03,-30.09,-22.75,-17.99,-19.6,-15.65,-17.78,-22.04,-20.06,-18.07,-12.85,-33.29,-34.63,-24.18,-23.78,-22.37,-23.97,-34.12,-25.25,-22.87,-18.48,-21.46,-28.56,-28.56,-21.3,-20.08,-18.82,-19.51,-12.05,-17.4,-23.93,-21.23,-16.23,-28.15,-20.81,-20.72,-23.29,-38.46,-15.48,-37.03,-20.48,-18.12,-18.17,-11.4,-23.1,-14.28,-22.87,-17.59,-27.6,-17.94,-17.88,-30.01,-19.19,-18.14,-23.46,-18.44,-18.21,-18.26,-15.85,-23.82,-18.6,-17.8,-10.78,-18.12,-19.34,-15.34,-24.97,-15.97,-23.47,-23.11,-20.54,-18.92,-20.16,-25.48,-18.19,-15.35,-18.69,-18.89,-17.61,-20.93,-17.6,-17.96,-18.8,-20.61,-20.74,-25.23,-23.9,-18.07,-15.43,-14.3,-18.04,-13.9,-17.64,-17.98,-25,-19.45,-16.11,-23.73,-17.74,-21.56,-20.97,-15.45,-15.93,-21.47,-21.44,-22.16,-13.36,-21.22,-26.1,-18.35,-17.2,-22.42,-17.91,-26.53,-26.5,-16.31,-18.76,-17.1,-19.28,-23.5,-21.26,-17.97,-26.02,-30.3,-24.89,-14.57,-15.4,-22.06,-25.14,-20.3,-25.28,-20.63,-19.02,-22.1,-38.59,-19.3,-31.03,-30.51,-22.55,-22.14,-25.6,-18.04,-21.29,-21.08,-20.64,-24.41,-12.16,-17.1,-21.13,-12.34,-16.43,-20.7,-21.18,-17.78,-21.57,-13.7,-12.27,-19.1,-19.85,-11.37,-20.7,-20.24,-16.4,-19.6,-21.63,-21.6,-21.77,-21.8,-21.05,-10.8,-17.9,-22.26,-22.33,-24.04,-20.4,-15,-27.87,-14.12,-23.61,-21.56,-21.19,-18.07,-26,-20.21,-28,-20.74,-31.8,-18.91,-20.45,-22.9,-18.11,-23.8,-23.42,-23.2,-12.93,-21.14,-19.13,-21.08,-20.07,-20.9,-25.04,-21.85,-19.34,-15.83,-23.73,-18.1,-22.12,-15.39,-16.21,-21.75,-22.1,-24.97,-19.36,-22.14,-21.48,-18.54,-21.62,-13.4,-15.5,-15.67,-21.78,-30.63,-15.7,-19.2,-19.7,-19.4,-15.85,-17.38,-24.33,-20.89,-18.97,-17.99,-15.8,-25.42,-21.6,-26.06,-17.56,-25.63,-25.46,-22.23,-21.55,-15.18,-13.79,-15.18,-18.78,-17.9,-18.5,-14.82,-15.65,-30.01,-13.16,-21.03,-21.4,-17.93,-20.87,-12.01,-19.1,-22.85,-17.08,-21.14,-12.23,-20.91,-11.38,-11.02,-22.09,-17.8,-18.94,-18.85,-21.91,-22.03,-18.1,-18.4,-21.2,-12,-11.7,-26.72,-24.39,-19.64,-21.35,-22.82,-38.28,-12.57,-22.24,-13.8,-21.07,-17.74,-23.87,-21.29,-22.2,-15.24,-17.82,-32.14,-19.3,-33.09,-20.18,-17.46,-17.44,-24.71,-21.53,-19.17,-28.05,-23.39,-22.33,-15.28,-20.27,-10.96,-21.52,-19.57,-23.08,-25.06,-17.85,-15.99,-20.56,-17.98,-18.4,-27.64,-20.99,-14.86,-29.33,-25.81,-14.1,-17.63,-23.47,-23.92,-20.88,-20.25,-19.33,-18.14,-22.41,-20.77,-17.95,-20.83,-27.84,-19.94,-23.6,-23.7,-30.39,-18.98,-27.89,-23.5,-23.73,-17.93,-35.94,-18.68,-23.47,-23.49,-23.85,-27.08,-20.88,-20.97,-21.71,-23.9,-15.78,-12.57,-19.69,-22.04,-17.99,-23.5,-21.4,-15.86,-23.95,-25.79,-23.75,-24.1,-18.56,-23.3,-17.03,-20.77,-28.1,-18.83,-23,-20.82,-22.95,-28.22,-27.99,-15.54,-12.37,-22.33,-22.7,-17.86,-16,-20.73,-15.45,-20.05,-17.95,-17.7,-25.93,-12.28,-20.13,-17.4,-21.59],"y":[181.62,181.03,184.1,181.66,181.96,184.31,166.1,181.93,181.74,179.59,180.69,167,182.11,181.66,169.92,184.95,165.96,181.5,179.78,180.31,181.16,166.32,180.16,182,180.28,181.49,167.51,180.79,181.47,182.37,179.24,166.74,185.05,180.8,186,179.33,169.23,181.28,181.4,169.33,176.78,186.1,179.82,186.04,169.41,182.3,181.7,166.32,180.08,185.25,182.35,184.42,173.2,180.67,182.16,182.13,181,180.6,181.35,179.2,181.55,182.4,172.38,166.22,181.41,184.93,181.6,179.62,181.86,187.81,185.8,184.35,166.2,179.99,181.23,180.04,184.7,167.06,181.71,181.11,180.21,180.99,182.38,183.4,181.7,184.31,170.5,179.96,186.3,186.44,167.53,167.06,182.02,169.71,185.26,182.4,181.11,183.41,166.54,179.92,185.61,178.41,180.39,181.6,180.69,183.5,180.6,169.49,185.9,177.81,185.23,182.31,182.45,178.3,178.35,178.31,172.23,172.29,167.4,169.48,166.97,178.9,180.4,182.43,180.6,167.89,183.84,178.57,181.7,183.51,185.43,181.22,168.98,180.3,180.82,168.02,187.32,182.8,182.6,184.16,169.46,181.4,167.1,181.43,173.5,184.4,185.17,173.49,180.17,181.5,184.5,167.62,182.56,165.8,167.68,181.32,166.07,180,169.84,166.24,180.5,179.52,167.16,180.2,179.9,179.43,182.12,183.84,180,169.42,181.83,180.34,180.9,184.68,182.29,180.2,180.64,185.16,181.48,184.24,181.75,183.5,184.3,183,181.85,187.09,181.9,181.85,179.88,185.13,184.09,169.31,182,179.5,179.61,181.19,182.53,182.75,181.74,180.3,182.18,182.2,183.59,183.35,169.09,182.32,180.54,181.69,180.62,182.3,180.13,184.1,181.71,185.68,180.27,181.58,182.4,181.52,183.83,182.39,185.7,171.65,184.48,182.1,180.16,166.66,182.9,185.75,182.53,171.52,180.94,180.81,182.82,185.35,180.13,179.93,182.68,180.63,166.53,180.22,182.74,182.84,166,183.68,185.51,181.67,181.65,186.9,180.01,169.5,166.26,167.24,181.38,170.4,182.1,180.88,184.89,169.33,179.36,179.89,184.23,181.51,169.01,181.47,183.05,184.2,167.24,168.8,182.37,180.85,181.41,180.38,179.9,181.99,180.38,181.4,180.18,179.22,180.52,182.51,180.1,180.54,177.77,185,184.68,179.85,180.6,185.32,181.57,182.28,181.49,166.2,181.5,179.69,186.21,185.86,178.4,181.51,181.2,169.32,169.28,184.14,185.74,181.38,171.39,179.7,181.36,180.53,181.39,181.5,169.58,169.63,181.91,181.41,183.78,181.02,181.03,169.24,179.5,167.1,167.32,183.48,182.04,182.31,166.36,182.3,181.2,165.77,185.77,166.24,183.87,180,182.6,166.6,179.07,182.18,182.1,182.18,182.38,182.18,182.28,181.7,182.5,182.5,182.39,182.47,182.4,182.39,185.48,182.43,182.61,166.29,181.32,182.02,182.36,181.32,171.4,182.68,182.53,166.47,181.58,185.72,179.6,179.9,169.21,183.61,182.37,183.2,182.51,182.93,179.99,184.08,181.09,181.4,184.06,186.75,181.6,186.66,186.42,186.71,167.95,167.14,182.82,167.33,182.01,181.66,181.49,180.98,165.99,183.88,186.16,183.68,181.26,181.9,181.2,179.6,181.42,188.13,181.3,170.3,182.16,166.14,181.4,178.59,184.5,181.5,182.3,167.51,180.23,181.6,186.8,184.56,169.14,180.1,185.2,167.26,167.26,181.7,181.8,186.2,180.38,182.77,186.8,179.71,180.9,182.4,181.24,182.6,169.15,180.96,183.4,180.26,182.23,178.47,183.2,182.93,169.48,182.3,182.04,185.32,166.37,184.68,168.52,182.54,183.81,183.52,185.64,181.59,181.5,180.15,182.5,179.68,167.7,182.8,184.7,167.32,181.59,185.6,179.99,180.63,186.8,180.62,180.7,180.86,181.16,181.9,167.5,185.43,181.11,180.57,184.36,185.48,185.94,166.06,185.9,181.6,177.47,183.2,180.23,185.2,180.68,184.87,183.3,181.21,181.3,183.4,180.5,181.2,181.13,170.62,181.63,169.04,180.23,183.54,185.31,172.91,185.3,181.2,180.22,184.46,187.1,186.3,183.81,166.87,180.09,182.3,165.98,165.96,165.76,180.02,183.63,184.28,187,180.17,181.82,187.2,166.02,184.52,186.9,179.79,185.77,182.54,183.33,167.38,181.15,180.84,167.18,167.01,183.13,180.8,167.01,166.83,183.2,166.94,184.6,167.25,181.31,166.69,167.34,181.59,167.42,166.9,166.85,166.8,166.91,167.54,166.18,181.91,187.15,181.41,182.22,168.71,166.62,184.61,184.6,184.42,184.46,183.95,180.47,166.49,181.57,184.47,182.1,182.8,180.97,183.91,182.26,181.18,183.84,179.82,167.26,187.55,182.41,186.51,182.04,187.8,181.31,181.69,182.64,183.4,167.16,181.33,166.36,181.87,181.25,186.74,168.75,179.87,181.42,179.27,181.06,181.9,167.15,166.28,185,169.76,166.78,182.93,182.39,184.03,181.96,182.25,180.81,180.86,174.46,179.8,185.5,185.62,180.92,180.2,182.4,170.99,168.98,181.87,186.26,181.53,184.91,168.69,181.54,165.67,181.3,179.1,179.02,180.31,171.5,179.91,181.75,179.86,172.65,182.37,181.02,183.47,183.59,180.92,183.22,182.21,183.97,167.39,186.54,180.18,181.09,167.91,183.4,185.01,181.41,184,176.03,186.73,177.52,181.38,181.88,181.98,166.07,180.12,170.34,171.72,180.98,182.1,180.6,180.58,180.8,182.3,180.87,180.11,181.04,180.87,180.98,184.83,180.09,184.28,181.32,166.1,181.71,182.62,167.1,182.85,186.08,180.24,179.15,181.66,169.37,184.27,180.94,181.74,186.4,169.1,181.24,183.32,181.54,181.5,181.4,182.41,182.44,181.53,179.86,179.9,181.58,185.19,167.32,181.57,167.18,177.01,181.51,180,184.48,187.48,179.98,186.78,183.23,181.72,186.73,167.91,185.86,170.45,180.49,172.76,181.51,182.5,185.27,182.9,171.4,181.48,178.3,178.29,168.08,169.71,182.8,182.78,180,181.69,181.48,181.2,180.8,179.67,167.24,186.87,183.95,178.42,181.4,181.17,181.61,186.83,185.3,175.7,183,181.59,181.3,183.34,180.64,180.3,181.84,185.77,180.85,169.66,180.03,167.03,185.9,185.6,167.43,186.73,184.3,180.92,185.33,183.86,166.75,167.41,184.52,184.51,166.55,186.3,185.1,182.73,184.53,180.77,180.5,181,183.6,180.9,165.8,181.5,171.44,171.46,184.85,186.1,184.62,183.4,166.64,180.27,185.5,181.58,181.65,178.43,181.9,182,180.7,180.6,169.46,182.1,183.8,181.63,184.7,180.21,184.8,169.52,181.06,184.97,181.3,181.75,182.02,179.84,180.89,186.59,167.1,183,181.72,180.49,185.1,186.52,180.67,180.4,179.54,186.36,179.62,182.44,168.93,182.4,166.9,185.3,185.23,183.11,180.9,185.1,184.37,182.44,182.29,185.9,168.63,179.97,185.26,169.44,181.62,185.25,182.65,169.9,180.05,181.23,180.26,179.98,180.48,181.39,185.93,166.56,167.23,186.72,181.41,185.4,171.17,185.17,181.15,167.24,180.78,180.78,181.89,181.7,166.66,169.63,181.37,185.96,174.21,167.02,181.57,167.05,167.01,180.58,181.2,182.43,182.2,181.28,179.77,181.63,184.84,181.4,166.2,166.3,182.69,178.98,169.5,170.04,184.52,177.1,167.11,180.28,166.53,183.78,181.25,180.15,185.8,180.58,185.11,181.27,180,185.86,180.94,181.62,181.42,181.33,179.85,170.52,169.53,182.39,179.97,171.51,185.98,181.51,165.97,169.75,184.47,183.45,182.8,181.44,167.95,184.41,181.61,181.77,182.22,181.02,167.32,182.72,182.54,166.01,185.13,180.21,180.21,185.18,184.75,186.16,181.71,183.99,181.16,181.73,181.01,182.1,182.39,183.99,184.13,182.4,182.32,182.92,184.9,184.49,181.62,178.52,184.5,179.95,180.06,180.26,183.44,184.95,181.2,183.58,184.6,167.44,166.72,184.23,183.95,181.59,180.13,180.74,166.98,184.64,182.38,184.5,184.5,169.05,184.68,185.74,183.71,183.5,182.26,170.7,181.67,170.56,183.6,183.5,187.15,166.93,171.66,170.3,181.3,184.53,181.42,181.42,183.86,181.37,188.1,179.54,167.06,184.2,187.8,170.56],"z":[-562,-650,-42,-626,-649,-195,-82,-194,-211,-622,-583,-249,-554,-600,-139,-306,-50,-590,-570,-598,-576,-211,-512,-125,-431,-537,-155,-498,-582,-328,-553,-50,-292,-349,-48,-600,-206,-574,-585,-230,-263,-96,-511,-94,-246,-56,-329,-70,-493,-129,-554,-223,-46,-593,-489,-562,-445,-584,-535,-530,-582,-260,-613,-84,-593,-286,-587,-627,-530,-40,-152,-201,-96,-506,-546,-564,-197,-265,-323,-304,-75,-367,-579,-284,-450,-170,-117,-538,-123,-69,-128,-236,-497,-271,-224,-375,-365,-306,-50,-484,-108,-583,-608,-72,-636,-293,-42,-100,-42,-146,-280,-388,-477,-617,-606,-609,-46,-64,-178,-248,-82,-81,-606,-571,-328,-49,-517,-600,-94,-307,-189,-527,-63,-510,-624,-53,-42,-199,-149,-210,-658,-582,-220,-205,-614,-186,-97,-48,-462,-573,-56,-127,-229,-112,-140,-597,-69,-452,-93,-103,-626,-504,-202,-42,-59,-40,-205,-244,-553,-239,-640,-434,-627,-99,-399,-216,-544,-206,-542,-339,-640,-67,-161,-375,-534,-45,-309,-576,-523,-290,-234,-223,-569,-605,-422,-637,-204,-175,-538,-595,-360,-445,-367,-190,-629,-261,-603,-508,-350,-533,-411,-338,-226,-93,-535,-573,-186,-618,-242,-342,-90,-130,-65,-397,-505,-71,-207,-154,-232,-106,-664,-397,-431,-57,-525,-574,-74,-617,-44,-470,-298,-148,-48,-107,-218,-597,-619,-46,-553,-150,-180,-97,-587,-106,-179,-680,-304,-254,-521,-526,-270,-548,-158,-562,-300,-65,-130,-82,-482,-607,-105,-590,-498,-504,-577,-529,-528,-492,-561,-579,-413,-565,-138,-383,-260,-522,-671,-123,-572,-529,-641,-67,-546,-507,-158,-148,-562,-601,-175,-260,-654,-242,-126,-555,-637,-500,-515,-583,-501,-55,-644,-641,-442,-464,-200,-479,-497,-218,-492,-325,-123,-210,-575,-129,-74,-49,-483,-93,-118,-83,-61,-534,-42,-219,-544,-56,-68,-69,-45,-43,-65,-80,-51,-68,-69,-103,-61,-69,-51,-55,-54,-59,-573,-56,-65,-587,-150,-403,-60,-130,-590,-135,-583,-406,-221,-40,-502,-103,-423,-158,-527,-219,-536,-630,-249,-48,-553,-112,-153,-130,-188,-226,-124,-204,-605,-221,-573,-401,-195,-56,-102,-44,-556,-417,-591,-646,-565,-52,-535,-641,-41,-109,-40,-548,-118,-593,-492,-123,-475,-153,-112,-99,-66,-481,-139,-211,-151,-211,-246,-47,-484,-119,-70,-579,-57,-176,-602,-488,-149,-546,-343,-530,-563,-537,-325,-80,-259,-476,-499,-257,-165,-136,-146,-524,-82,-90,-138,-499,-538,-467,-184,-538,-45,-237,-162,-136,-604,-107,-538,-639,-45,-636,-628,-632,-215,-556,-135,-297,-568,-168,-269,-143,-95,-142,-104,-169,-65,-54,-474,-125,-617,-294,-180,-47,-593,-94,-201,-537,-594,-638,-80,-211,-520,-384,-223,-54,-57,-49,-508,-242,-62,-63,-203,-132,-543,-589,-51,-45,-63,-485,-66,-58,-70,-541,-598,-50,-102,-144,-58,-460,-69,-570,-70,-137,-41,-586,-140,-213,-393,-51,-64,-45,-296,-50,-44,-68,-549,-150,-47,-543,-40,-100,-85,-98,-58,-125,-89,-590,-49,-543,-506,-40,-42,-76,-63,-104,-93,-64,-587,-83,-579,-40,-62,-273,-393,-264,-174,-574,-309,-75,-195,-44,-420,-63,-609,-40,-575,-559,-405,-70,-41,-605,-130,-577,-599,-82,-50,-480,-559,-566,-611,-409,-209,-70,-74,-134,-150,-406,-243,-89,-53,-68,-605,-615,-546,-176,-52,-66,-377,-186,-51,-67,-234,-597,-64,-511,-47,-49,-546,-75,-60,-278,-550,-518,-116,-518,-75,-491,-56,-376,-584,-48,-53,-617,-294,-417,-280,-332,-85,-525,-613,-182,-57,-79,-595,-164,-148,-82,-153,-556,-649,-651,-93,-533,-642,-47,-548,-154,-627,-622,-286,-390,-624,-539,-624,-631,-631,-299,-498,-255,-539,-195,-594,-573,-128,-137,-143,-511,-564,-559,-248,-210,-390,-616,-98,-218,-655,-356,-564,-548,-655,-385,-518,-598,-476,-579,-603,-249,-208,-587,-221,-545,-586,-488,-246,-61,-524,-104,-271,-487,-83,-183,-55,-166,-586,-618,-524,-133,-201,-383,-86,-555,-605,-609,-204,-287,-390,-348,-550,-487,-578,-361,-275,-498,-162,-78,-134,-554,-608,-367,-599,-45,-50,-162,-302,-57,-203,-66,-591,-440,-611,-57,-627,-89,-500,-264,-127,-85,-50,-75,-182,-619,-223,-156,-46,-50,-230,-184,-188,-80,-86,-391,-199,-592,-595,-618,-213,-616,-175,-589,-83,-119,-70,-74,-40,-87,-63,-537,-47,-490,-593,-644,-576,-199,-589,-178,-248,-500,-71,-568,-42,-510,-97,-663,-625,-210,-557,-582,-402,-474,-577,-56,-43,-118,-544,-532,-237,-111,-595,-603,-505,-100,-587,-364,-100,-350,-228,-93,-66,-225,-334,-70,-220,-397,-326,-121,-209,-510,-54,-242,-574,-82,-102,-43,-432,-580,-464,-479,-581,-513,-77,-68,-71,-68,-586,-243,-658,-315,-210,-278,-638,-615,-567,-560,-99,-266,-397,-180,-40,-242,-530,-133,-62,-580,-530,-566,-501,-548,-587,-592,-221,-560,-94,-139,-162,-562,-204,-56,-49,-100,-231,-601,-42,-180,-559,-524,-69,-594,-262,-538,-331,-48,-47,-558,-524,-545,-477,-129,-268,-117,-541,-112,-162,-609,-76,-61,-202,-90,-133,-589,-190,-138,-598,-600,-162,-626,-137,-57,-201,-69,-219,-553,-524,-51,-107,-44,-574,-128,-568,-583,-622,-193,-544,-118,-51,-63,-442,-87,-61,-60,-561,-138,-174,-543,-530,-497,-63,-82,-605,-234,-41,-40,-137,-223,-109,-595,-512,-613,-60,-43,-172,-54,-68,-217,-102,-178,-251,-42,-575,-43,-577,-42,-75,-71,-60,-291,-125,-69,-614,-108,-575,-409,-243,-642,-45,-470,-248,-244,-40,-165],"type":"scatter3d","mode":"markers","marker":{"colorbar":{"title":"mag","ticklen":2},"cmin":4,"cmax":6.4,"colorscale":[["0","rgba(255,255,229,1)"],["0.0416666666666665","rgba(255,252,215,1)"],["0.0833333333333334","rgba(255,250,202,1)"],["0.125","rgba(255,247,188,1)"],["0.166666666666667","rgba(255,240,174,1)"],["0.208333333333333","rgba(255,234,159,1)"],["0.25","rgba(254,227,145,1)"],["0.291666666666667","rgba(255,217,124,1)"],["0.333333333333333","rgba(255,206,102,1)"],["0.375","rgba(254,196,79,1)"],["0.416666666666667","rgba(255,182,67,1)"],["0.458333333333333","rgba(255,168,54,1)"],["0.5","rgba(254,153,41,1)"],["0.541666666666667","rgba(248,140,34,1)"],["0.583333333333333","rgba(242,126,27,1)"],["0.625","rgba(236,112,20,1)"],["0.666666666666667","rgba(225,100,14,1)"],["0.708333333333333","rgba(215,88,7,1)"],["0.75","rgba(204,76,2,1)"],["0.791666666666667","rgba(187,68,3,1)"],["0.833333333333333","rgba(170,60,4,1)"],["0.875","rgba(153,52,4,1)"],["0.916666666666667","rgba(136,47,6,1)"],["0.958333333333333","rgba(119,42,6,1)"],["1","rgba(102,37,6,1)"]],"showscale":false,"color":[4.8,4.2,5.4,4.1,4,4,4.8,4.4,4.7,4.3,4.4,4.6,4.4,4.4,6.1,4.3,6,4.5,4.4,4.4,4.5,4.2,4.4,4.7,5.4,4,4.6,5.2,4.5,4.4,4.6,4.7,4.8,4,4.5,4.3,4.5,4.6,4.1,4.4,4.7,4.6,4.4,4.3,4.6,4.9,4.5,4.4,4.3,5.1,4.2,4,4.6,4.3,4.2,4.4,4.5,4,4.4,4.3,4.7,4.1,5,4.6,4.9,4.7,4.1,5,4.5,5.5,4,4.5,4.3,5.2,4.4,4.3,4.1,4.5,4.2,5.3,5.2,4.5,4.6,4.3,4,4.3,4.7,4.5,4.2,4.3,5.1,4.7,5.2,4.2,4.2,4,4.5,5.2,5.1,4.7,4.1,4.6,4.7,4.7,4.6,4.2,4.4,4.6,5.7,5,4.5,4.2,4,4.8,4.4,4.2,5.3,4.7,4.8,4.2,4.8,4.3,4.7,4.5,4.4,5.1,4.2,5,4.8,4.3,4.5,4.2,4.5,4.6,4.3,4.7,5.1,4.6,4.9,4.2,4.6,4,5,4.4,4.2,4.2,4.4,4.9,5.3,4,5.7,6.4,4.3,4.2,4.7,4.7,4.2,4.3,4.9,4.6,4.1,4.8,4.6,4.6,4.8,5,5.6,5.3,4.7,4.5,4.3,4.6,4.1,4.1,4.1,5.7,5,4.5,4.1,4.6,4.5,4.3,4.4,4.2,4.1,4.9,4.3,4.9,4.6,4.6,5.3,4.7,4.6,4.1,4.6,4.2,4.6,4.5,4.3,5.2,4.3,4,4.7,4.5,4.5,4.3,5.2,4.5,4.7,4.2,4.7,4.3,4.1,5.4,4.3,4.3,4.2,4.6,4.4,4.2,4.7,4.6,4.9,4.2,4.5,4.9,4.2,4.5,5,5,4.7,4.3,4.4,4.9,4.5,4,4.4,5,4.7,4.8,4.5,4.1,5.3,4.8,5,4.6,4.3,4.7,5.3,4.2,4.7,4.5,5.1,4.9,4.4,4.2,4.6,4.7,4.2,4.9,5.1,4.7,4.4,4.4,4.2,4.9,4.6,4.4,4.6,4.5,4.4,4.9,4.1,4.2,5.7,4.6,5,4.3,4.5,5.2,4.4,4.2,4.6,4,4.4,4.7,4.2,4.7,4.5,5,5,4.8,4.6,4.6,5,5,5.6,4,4,4.6,4.4,4.8,4.7,4.6,4.3,4.7,4.1,4.9,4.6,4.8,4.9,5.1,5.4,4.5,4.9,4.4,4.1,5.3,4.5,4.9,4.8,5.2,4.4,4.4,4.9,4.4,4.2,4.6,4.6,5.3,5.3,4.5,4.4,5,5.1,4.5,4.5,5.4,4.5,4.7,4.2,4.8,4.5,4.3,4.3,4.3,4.6,4.5,5,4.6,4.6,4.9,4.1,5.5,4.7,5,5.1,5.5,4.6,4.7,4.2,4,5.4,4.3,4.4,4.6,5.1,4.5,4.2,4.1,5.1,5.4,5.1,5.1,4.4,5.7,4.4,5.1,4.6,5.5,5.1,4.4,5,5,5.1,5.1,4.2,4.5,4,4.9,4.3,4.8,4.4,4.2,4.9,4.2,5.3,5,5.7,5.3,4.7,4.6,4.3,5.4,4.4,4.3,4.3,4.7,4.4,4.2,4.5,4.8,4.8,4.3,4.4,5.1,4.4,4.4,4.3,4.8,4.3,4.5,4.1,5.1,4.7,4.6,4.7,4.6,4.4,4.2,4.1,4.7,4,4.8,4.4,4.3,4.4,4.5,4.5,4.7,4.3,4.7,4.8,4.6,5.1,4.7,4.3,5.1,5.5,4.5,4.3,4.3,4.7,4.3,4.3,4.6,4.5,4.5,5.4,4.6,4.4,5,5.2,4.4,5.1,4.4,4.4,4.8,4.4,4.7,4.7,4.4,4.3,5,4.5,4.6,5.4,4.6,4.5,4.4,4.5,4.1,4,4.9,4.1,5.2,4.4,4.1,4.9,4.6,4.5,4.8,4.2,4.2,4.1,5.5,4.4,4.8,4.2,4.8,4.9,4.6,4.5,4.4,4.6,4.2,4.7,4.4,4.5,4.9,4.7,5.5,4.7,4.6,4.1,4.7,4.6,4.3,4.4,4.7,4.3,4.1,4.7,4.5,5.5,4.5,4.6,5.1,4.4,4.7,5.5,4.6,4,4.6,4.8,4.7,4.7,4.2,5.4,4.6,5.5,4.2,4.5,4.5,4.8,4.6,5.4,4.6,5,4.3,4.3,4.8,4.7,4.7,4.8,4.2,4.2,5.9,4.6,4.5,4.9,4.7,4.9,5.3,4.2,4.2,4.5,5.2,4.5,5.6,5.2,4.8,4.5,5,4.4,4.5,4.6,4.5,5.2,5.1,4.8,4.3,5.1,4.7,4.6,4.8,4.6,4.4,4.6,5.1,4.3,4.4,4.7,4.8,4.1,4.6,4.9,4,4.7,4.7,5.2,4.6,4.6,4.9,5.7,4.7,4.4,4.9,4.8,4.6,4.4,4.8,4.7,4.2,5.1,4.8,4.9,5.1,4.3,4.4,4.7,4.7,5.3,5.1,4.9,4.5,4.7,4.2,5.1,4.8,4.2,4.8,4.4,4.5,4.3,5.6,4,5,4.2,4.6,4.6,4.5,5,4.7,4.6,4.8,4.6,4.4,5.6,4.2,5.4,4.8,5.6,4.4,4.7,4.6,5.1,4.6,4.5,4.2,4.8,4.9,5.5,5,4.2,5.2,4.8,4.4,4.8,4.4,4.1,4.9,4.6,4.5,5.3,4.8,4.6,4.8,4.7,4.9,5.3,4.4,4.6,4.3,4.4,4.2,4.1,4.2,5,4.1,4.3,5.2,4.2,4.5,4.4,4.4,5,4,4.8,5,4.2,5.2,5.2,4.5,4.3,4.5,4.6,5.1,4.4,4.3,4.7,5.6,4.9,5.1,4.6,4.4,4.8,4.2,4.7,4.1,4.7,4,4.9,5,4.5,4.4,4,4.5,4.7,4.4,4.7,4.7,4,4.2,4.5,4.7,4.5,4.1,4.6,4.3,4.6,5.2,4.6,4.7,5,5.2,4.4,4.6,4.5,4,4.2,5.3,5.9,4.9,4.5,4.4,5.4,5.3,5.1,4.1,4.3,4.5,4.1,5.1,5.3,4.5,4.1,4.4,4.7,4,5.1,4,4.3,4.3,4,4.1,4.4,4.3,4.2,4,4.5,4.7,5,4.3,5.1,4.7,5.3,5,4.5,5,4.1,4.9,4.1,4,4.4,4.5,4.4,4.5,4.3,4.3,5,4.5,4.5,4.4,4.5,4.1,4.9,4.7,4.3,4.6,4.6,5.2,4.5,4.3,4.6,4,4.5,4.8,4.6,4.1,4.9,4.7,4.1,4.3,4.4,4,4.8,4.4,4.4,4.6,4.2,4.1,4.2,4,4.1,4.1,4.7,4.8,5.1,5,4.8,4.4,5,5.2,4.2,4.1,4.8,4.5,5,5.1,4.1,4.7,5.2,4.8,4.5,4,4.7,4.1,4.3,4.3,4,4.7,4.1,4.2,4.8,4.8,4.2,4.2,5.7,6,4.2,4.5,4.9,4.4,4,4.3,4.2,4.5,4.8,4.4,4.2,4.2,5,4.2,5.2,4.5,4.6,5,5,5.4,4.8,4.2,5.5,4.3,4.1,4.4,4.9,4.5,4.9,4,4.5,5,4.9,4.5,4.2,4.2,4.2,5.2,4.3,5.1,4.6,4.6,4.4,4.4,4.9,5.1,4.2,4.7,4,5.6,5.3,5,4.3,4.1,5.1,4.5,4.9,5.4,4.7,4.8,4.5,4.2,4.6,4.6,5.6,5.4,4,5.2,4.2,4.7,4.3,4.8,4.6,5.4,4.8,4.6,4.2,5.5,4.7,4.7,4.5,5.5,4.5,4.1,4,4.3,4.7,4.9,4.5,4.7,4.5,4.8,4.3,4.1,5.4,4.1,4.8,4.2,4.8,5.4,4.4,5.2,4.7,4.9,4.9,4.2,4.4,4.4,4.3,4.9,5,4.7,4.9,4.3,4.5,4.2,5.2,4.8,4,4.7,4.3,4.3,4.9,4,4.2,4.4,4.7,4.5,4.5,6],"size":[55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55,55],"sizemode":"area","line":{"colorbar":{"title":"","ticklen":2},"cmin":4,"cmax":6.4,"colorscale":[["0","rgba(255,255,229,1)"],["0.0416666666666665","rgba(255,252,215,1)"],["0.0833333333333334","rgba(255,250,202,1)"],["0.125","rgba(255,247,188,1)"],["0.166666666666667","rgba(255,240,174,1)"],["0.208333333333333","rgba(255,234,159,1)"],["0.25","rgba(254,227,145,1)"],["0.291666666666667","rgba(255,217,124,1)"],["0.333333333333333","rgba(255,206,102,1)"],["0.375","rgba(254,196,79,1)"],["0.416666666666667","rgba(255,182,67,1)"],["0.458333333333333","rgba(255,168,54,1)"],["0.5","rgba(254,153,41,1)"],["0.541666666666667","rgba(248,140,34,1)"],["0.583333333333333","rgba(242,126,27,1)"],["0.625","rgba(236,112,20,1)"],["0.666666666666667","rgba(225,100,14,1)"],["0.708333333333333","rgba(215,88,7,1)"],["0.75","rgba(204,76,2,1)"],["0.791666666666667","rgba(187,68,3,1)"],["0.833333333333333","rgba(170,60,4,1)"],["0.875","rgba(153,52,4,1)"],["0.916666666666667","rgba(136,47,6,1)"],["0.958333333333333","rgba(119,42,6,1)"],["1","rgba(102,37,6,1)"]],"showscale":false,"color":[4.8,4.2,5.4,4.1,4,4,4.8,4.4,4.7,4.3,4.4,4.6,4.4,4.4,6.1,4.3,6,4.5,4.4,4.4,4.5,4.2,4.4,4.7,5.4,4,4.6,5.2,4.5,4.4,4.6,4.7,4.8,4,4.5,4.3,4.5,4.6,4.1,4.4,4.7,4.6,4.4,4.3,4.6,4.9,4.5,4.4,4.3,5.1,4.2,4,4.6,4.3,4.2,4.4,4.5,4,4.4,4.3,4.7,4.1,5,4.6,4.9,4.7,4.1,5,4.5,5.5,4,4.5,4.3,5.2,4.4,4.3,4.1,4.5,4.2,5.3,5.2,4.5,4.6,4.3,4,4.3,4.7,4.5,4.2,4.3,5.1,4.7,5.2,4.2,4.2,4,4.5,5.2,5.1,4.7,4.1,4.6,4.7,4.7,4.6,4.2,4.4,4.6,5.7,5,4.5,4.2,4,4.8,4.4,4.2,5.3,4.7,4.8,4.2,4.8,4.3,4.7,4.5,4.4,5.1,4.2,5,4.8,4.3,4.5,4.2,4.5,4.6,4.3,4.7,5.1,4.6,4.9,4.2,4.6,4,5,4.4,4.2,4.2,4.4,4.9,5.3,4,5.7,6.4,4.3,4.2,4.7,4.7,4.2,4.3,4.9,4.6,4.1,4.8,4.6,4.6,4.8,5,5.6,5.3,4.7,4.5,4.3,4.6,4.1,4.1,4.1,5.7,5,4.5,4.1,4.6,4.5,4.3,4.4,4.2,4.1,4.9,4.3,4.9,4.6,4.6,5.3,4.7,4.6,4.1,4.6,4.2,4.6,4.5,4.3,5.2,4.3,4,4.7,4.5,4.5,4.3,5.2,4.5,4.7,4.2,4.7,4.3,4.1,5.4,4.3,4.3,4.2,4.6,4.4,4.2,4.7,4.6,4.9,4.2,4.5,4.9,4.2,4.5,5,5,4.7,4.3,4.4,4.9,4.5,4,4.4,5,4.7,4.8,4.5,4.1,5.3,4.8,5,4.6,4.3,4.7,5.3,4.2,4.7,4.5,5.1,4.9,4.4,4.2,4.6,4.7,4.2,4.9,5.1,4.7,4.4,4.4,4.2,4.9,4.6,4.4,4.6,4.5,4.4,4.9,4.1,4.2,5.7,4.6,5,4.3,4.5,5.2,4.4,4.2,4.6,4,4.4,4.7,4.2,4.7,4.5,5,5,4.8,4.6,4.6,5,5,5.6,4,4,4.6,4.4,4.8,4.7,4.6,4.3,4.7,4.1,4.9,4.6,4.8,4.9,5.1,5.4,4.5,4.9,4.4,4.1,5.3,4.5,4.9,4.8,5.2,4.4,4.4,4.9,4.4,4.2,4.6,4.6,5.3,5.3,4.5,4.4,5,5.1,4.5,4.5,5.4,4.5,4.7,4.2,4.8,4.5,4.3,4.3,4.3,4.6,4.5,5,4.6,4.6,4.9,4.1,5.5,4.7,5,5.1,5.5,4.6,4.7,4.2,4,5.4,4.3,4.4,4.6,5.1,4.5,4.2,4.1,5.1,5.4,5.1,5.1,4.4,5.7,4.4,5.1,4.6,5.5,5.1,4.4,5,5,5.1,5.1,4.2,4.5,4,4.9,4.3,4.8,4.4,4.2,4.9,4.2,5.3,5,5.7,5.3,4.7,4.6,4.3,5.4,4.4,4.3,4.3,4.7,4.4,4.2,4.5,4.8,4.8,4.3,4.4,5.1,4.4,4.4,4.3,4.8,4.3,4.5,4.1,5.1,4.7,4.6,4.7,4.6,4.4,4.2,4.1,4.7,4,4.8,4.4,4.3,4.4,4.5,4.5,4.7,4.3,4.7,4.8,4.6,5.1,4.7,4.3,5.1,5.5,4.5,4.3,4.3,4.7,4.3,4.3,4.6,4.5,4.5,5.4,4.6,4.4,5,5.2,4.4,5.1,4.4,4.4,4.8,4.4,4.7,4.7,4.4,4.3,5,4.5,4.6,5.4,4.6,4.5,4.4,4.5,4.1,4,4.9,4.1,5.2,4.4,4.1,4.9,4.6,4.5,4.8,4.2,4.2,4.1,5.5,4.4,4.8,4.2,4.8,4.9,4.6,4.5,4.4,4.6,4.2,4.7,4.4,4.5,4.9,4.7,5.5,4.7,4.6,4.1,4.7,4.6,4.3,4.4,4.7,4.3,4.1,4.7,4.5,5.5,4.5,4.6,5.1,4.4,4.7,5.5,4.6,4,4.6,4.8,4.7,4.7,4.2,5.4,4.6,5.5,4.2,4.5,4.5,4.8,4.6,5.4,4.6,5,4.3,4.3,4.8,4.7,4.7,4.8,4.2,4.2,5.9,4.6,4.5,4.9,4.7,4.9,5.3,4.2,4.2,4.5,5.2,4.5,5.6,5.2,4.8,4.5,5,4.4,4.5,4.6,4.5,5.2,5.1,4.8,4.3,5.1,4.7,4.6,4.8,4.6,4.4,4.6,5.1,4.3,4.4,4.7,4.8,4.1,4.6,4.9,4,4.7,4.7,5.2,4.6,4.6,4.9,5.7,4.7,4.4,4.9,4.8,4.6,4.4,4.8,4.7,4.2,5.1,4.8,4.9,5.1,4.3,4.4,4.7,4.7,5.3,5.1,4.9,4.5,4.7,4.2,5.1,4.8,4.2,4.8,4.4,4.5,4.3,5.6,4,5,4.2,4.6,4.6,4.5,5,4.7,4.6,4.8,4.6,4.4,5.6,4.2,5.4,4.8,5.6,4.4,4.7,4.6,5.1,4.6,4.5,4.2,4.8,4.9,5.5,5,4.2,5.2,4.8,4.4,4.8,4.4,4.1,4.9,4.6,4.5,5.3,4.8,4.6,4.8,4.7,4.9,5.3,4.4,4.6,4.3,4.4,4.2,4.1,4.2,5,4.1,4.3,5.2,4.2,4.5,4.4,4.4,5,4,4.8,5,4.2,5.2,5.2,4.5,4.3,4.5,4.6,5.1,4.4,4.3,4.7,5.6,4.9,5.1,4.6,4.4,4.8,4.2,4.7,4.1,4.7,4,4.9,5,4.5,4.4,4,4.5,4.7,4.4,4.7,4.7,4,4.2,4.5,4.7,4.5,4.1,4.6,4.3,4.6,5.2,4.6,4.7,5,5.2,4.4,4.6,4.5,4,4.2,5.3,5.9,4.9,4.5,4.4,5.4,5.3,5.1,4.1,4.3,4.5,4.1,5.1,5.3,4.5,4.1,4.4,4.7,4,5.1,4,4.3,4.3,4,4.1,4.4,4.3,4.2,4,4.5,4.7,5,4.3,5.1,4.7,5.3,5,4.5,5,4.1,4.9,4.1,4,4.4,4.5,4.4,4.5,4.3,4.3,5,4.5,4.5,4.4,4.5,4.1,4.9,4.7,4.3,4.6,4.6,5.2,4.5,4.3,4.6,4,4.5,4.8,4.6,4.1,4.9,4.7,4.1,4.3,4.4,4,4.8,4.4,4.4,4.6,4.2,4.1,4.2,4,4.1,4.1,4.7,4.8,5.1,5,4.8,4.4,5,5.2,4.2,4.1,4.8,4.5,5,5.1,4.1,4.7,5.2,4.8,4.5,4,4.7,4.1,4.3,4.3,4,4.7,4.1,4.2,4.8,4.8,4.2,4.2,5.7,6,4.2,4.5,4.9,4.4,4,4.3,4.2,4.5,4.8,4.4,4.2,4.2,5,4.2,5.2,4.5,4.6,5,5,5.4,4.8,4.2,5.5,4.3,4.1,4.4,4.9,4.5,4.9,4,4.5,5,4.9,4.5,4.2,4.2,4.2,5.2,4.3,5.1,4.6,4.6,4.4,4.4,4.9,5.1,4.2,4.7,4,5.6,5.3,5,4.3,4.1,5.1,4.5,4.9,5.4,4.7,4.8,4.5,4.2,4.6,4.6,5.6,5.4,4,5.2,4.2,4.7,4.3,4.8,4.6,5.4,4.8,4.6,4.2,5.5,4.7,4.7,4.5,5.5,4.5,4.1,4,4.3,4.7,4.9,4.5,4.7,4.5,4.8,4.3,4.1,5.4,4.1,4.8,4.2,4.8,5.4,4.4,5.2,4.7,4.9,4.9,4.2,4.4,4.4,4.3,4.9,5,4.7,4.9,4.3,4.5,4.2,5.2,4.8,4,4.7,4.3,4.3,4.9,4,4.2,4.4,4.7,4.5,4.5,6]}},"textfont":{"size":55},"error_y":{"width":55},"error_x":{"width":55},"line":{"width":55},"frame":null},{"x":[-38.59,-10.72],"y":[165.67,188.13],"type":"scatter3d","mode":"markers","opacity":0,"hoverinfo":"none","showlegend":false,"marker":{"colorbar":{"title":"mag","ticklen":2,"len":0.5,"lenmode":"fraction","y":1,"yanchor":"top"},"cmin":4,"cmax":6.4,"colorscale":[["0","rgba(255,255,229,1)"],["0.0416666666666665","rgba(255,252,215,1)"],["0.0833333333333334","rgba(255,250,202,1)"],["0.125","rgba(255,247,188,1)"],["0.166666666666667","rgba(255,240,174,1)"],["0.208333333333333","rgba(255,234,159,1)"],["0.25","rgba(254,227,145,1)"],["0.291666666666667","rgba(255,217,124,1)"],["0.333333333333333","rgba(255,206,102,1)"],["0.375","rgba(254,196,79,1)"],["0.416666666666667","rgba(255,182,67,1)"],["0.458333333333333","rgba(255,168,54,1)"],["0.5","rgba(254,153,41,1)"],["0.541666666666667","rgba(248,140,34,1)"],["0.583333333333333","rgba(242,126,27,1)"],["0.625","rgba(236,112,20,1)"],["0.666666666666667","rgba(225,100,14,1)"],["0.708333333333333","rgba(215,88,7,1)"],["0.75","rgba(204,76,2,1)"],["0.791666666666667","rgba(187,68,3,1)"],["0.833333333333333","rgba(170,60,4,1)"],["0.875","rgba(153,52,4,1)"],["0.916666666666667","rgba(136,47,6,1)"],["0.958333333333333","rgba(119,42,6,1)"],["1","rgba(102,37,6,1)"]],"showscale":true,"color":[4,6.4],"line":{"color":"rgba(255,127,14,1)"}},"z":[-680,-40],"frame":null}],"highlight":{"on":"plotly_click","persistent":false,"dynamic":false,"selectize":false,"opacityDim":0.2,"selected":{"opacity":1},"debounce":0},"shinyEvents":["plotly_hover","plotly_click","plotly_selected","plotly_relayout","plotly_brushed","plotly_brushing","plotly_clickannotation","plotly_doubleclick","plotly_deselect","plotly_afterplot","plotly_sunburstclick"],"base_url":"https://plot.ly"},"evals":[],"jsHooks":[]}</script>

---

La magnitudo del terremoto dipende dalla profondità dello stesso? Si costruisca un grafico appropriato per rispondere a questa domanda.

---

```r
plot(quakes$depth, jitter(quakes$mag), xlab="profondità del terremoto",
ylab="magnitudo del terremoto")
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-16-1.png)

---

Il numero di stazioni che riportano l'evento dipende dalla magnitudo? Si costruisca un grafico appropriato per rispondere a questa domanda.

---

```r
plot(jitter(quakes$mag), quakes$stations, xlab="magnitudo del terremoto",
ylab="numbero di stazioni che rilevano il terremoto")
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-17-1.png)

---

In che modo la profondità dell'evento dipende dalla longitudine e dalla latitudine?

Costruire un diagramma di dispersione colorando ogni punto (posizione geografica) con i colori verde, arancione o rosso a seconda della profondità utilizzando gli intervalli (0-250], (250-450], (450,700].

---

```r
intervalli <- cut(quakes$depth, breaks = c(0, 250, 450, 700),
labels = c("green", "orange", "red"))
intervalli<- as.character(intervalli)
plot(quakes$long, quakes$lat, pch = 20, col = intervalli, xlab="longitudine",
ylab="latitudine")
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-18-1.png)

---

Proviamo a costruire il diagramma di dispersione di latitudine e longitudine condizionato a 4 intervalli (non necessariamente disgiunti) utilizzando il comando `co.intervals()`

---

```r
intervalli <- co.intervals(quakes$depth, number=4, overlap=0.1)
coplot(lat ~ long | depth, data = quakes, given.v = intervalli, rows = 1)
```

![](3_rapgraf_slide_files/figure-html/unnamed-chunk-19-1.png)
