Introduction to Statistical Learning - PISE
Best Subset Selection
Apply best subset selection to the
Hittersdata
Goal: predict a player’s
Salaryusing performance statistics from the previous yearSalaryhas missing values
is.na()identifies missing entries
sum()counts how many are missing
[1] "AtBat" "Hits" "HmRun" "Runs" "RBI" "Walks"
[7] "Years" "CAtBat" "CHits" "CHmRun" "CRuns" "CRBI"
[13] "CWalks" "League" "Division" "PutOuts" "Assists" "Errors"
[19] "Salary" "NewLeague"[1] 322 20[1] 59Salaryis missing for 59 players
na.omit()removes rows with missing values
regsubsets()from theleapspackage performs best subset selection
- It finds the best model of each size, where best means lowest RSS
summary()shows the selected variables for each model size
Subset selection object
Call: regsubsets.formula(Salary ~ ., Hitters)
19 Variables (and intercept)
Forced in Forced out
AtBat FALSE FALSE
Hits FALSE FALSE
HmRun FALSE FALSE
Runs FALSE FALSE
RBI FALSE FALSE
Walks FALSE FALSE
Years FALSE FALSE
CAtBat FALSE FALSE
CHits FALSE FALSE
CHmRun FALSE FALSE
CRuns FALSE FALSE
CRBI FALSE FALSE
CWalks FALSE FALSE
LeagueN FALSE FALSE
DivisionW FALSE FALSE
PutOuts FALSE FALSE
Assists FALSE FALSE
Errors FALSE FALSE
NewLeagueN FALSE FALSE
1 subsets of each size up to 8
Selection Algorithm: exhaustive
AtBat Hits HmRun Runs RBI Walks Years CAtBat CHits CHmRun CRuns CRBI
1 ( 1 ) " " " " " " " " " " " " " " " " " " " " " " "*"
2 ( 1 ) " " "*" " " " " " " " " " " " " " " " " " " "*"
3 ( 1 ) " " "*" " " " " " " " " " " " " " " " " " " "*"
4 ( 1 ) " " "*" " " " " " " " " " " " " " " " " " " "*"
5 ( 1 ) "*" "*" " " " " " " " " " " " " " " " " " " "*"
6 ( 1 ) "*" "*" " " " " " " "*" " " " " " " " " " " "*"
7 ( 1 ) " " "*" " " " " " " "*" " " "*" "*" "*" " " " "
8 ( 1 ) "*" "*" " " " " " " "*" " " " " " " "*" "*" " "
CWalks LeagueN DivisionW PutOuts Assists Errors NewLeagueN
1 ( 1 ) " " " " " " " " " " " " " "
2 ( 1 ) " " " " " " " " " " " " " "
3 ( 1 ) " " " " " " "*" " " " " " "
4 ( 1 ) " " " " "*" "*" " " " " " "
5 ( 1 ) " " " " "*" "*" " " " " " "
6 ( 1 ) " " " " "*" "*" " " " " " "
7 ( 1 ) " " " " "*" "*" " " " " " "
8 ( 1 ) "*" " " "*" "*" " " " " " " - An asterisk indicates that a variable is included in the model
- By default, output is shown only up to 8 predictors
- Use
nvmaxto increase the maximum model size
summary()also returns:R^2- RSS
- adjusted
R^2 C_p- BIC
R^2increases as more variables are added
[1] 0.3214501 0.4252237 0.4514294 0.4754067 0.4908036 0.5087146 0.5141227
[8] 0.5285569 0.5346124 0.5404950 0.5426153 0.5436302 0.5444570 0.5452164

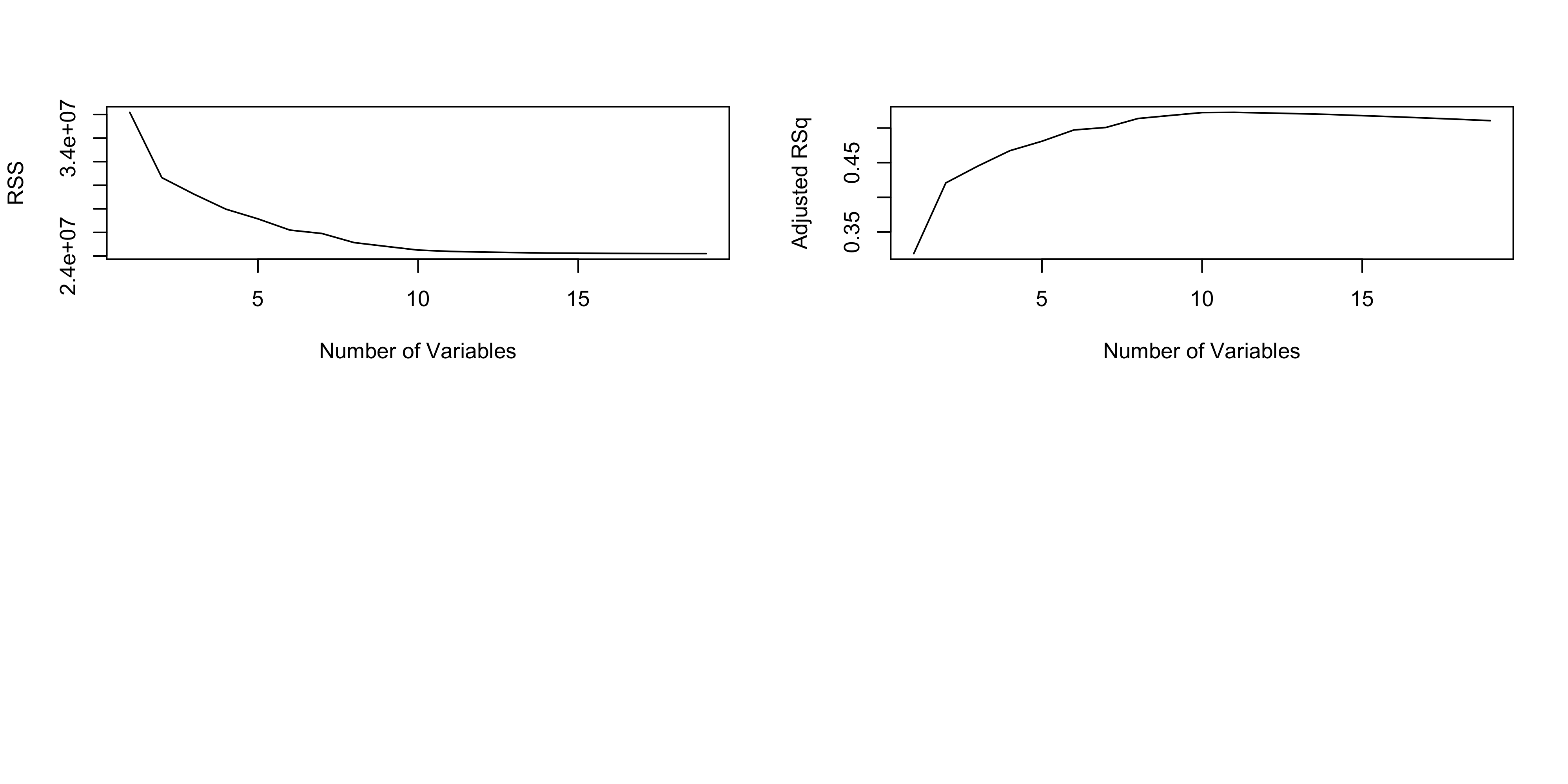

[15] 0.5454692 0.5457656 0.5459518 0.5460945 0.5461159- Plot RSS and adjusted
R^2across model sizes
type = "l"connects the points with lines
par(mfrow = c(2, 2))
plot(reg.summary$rss, xlab = "Number of Variables",
ylab = "RSS", type = "l")
plot(reg.summary$adjr2, xlab = "Number of Variables",
ylab = "Adjusted RSq", type = "l")
points()adds points to an existing plot
which.max()identifies the location of the maximum value

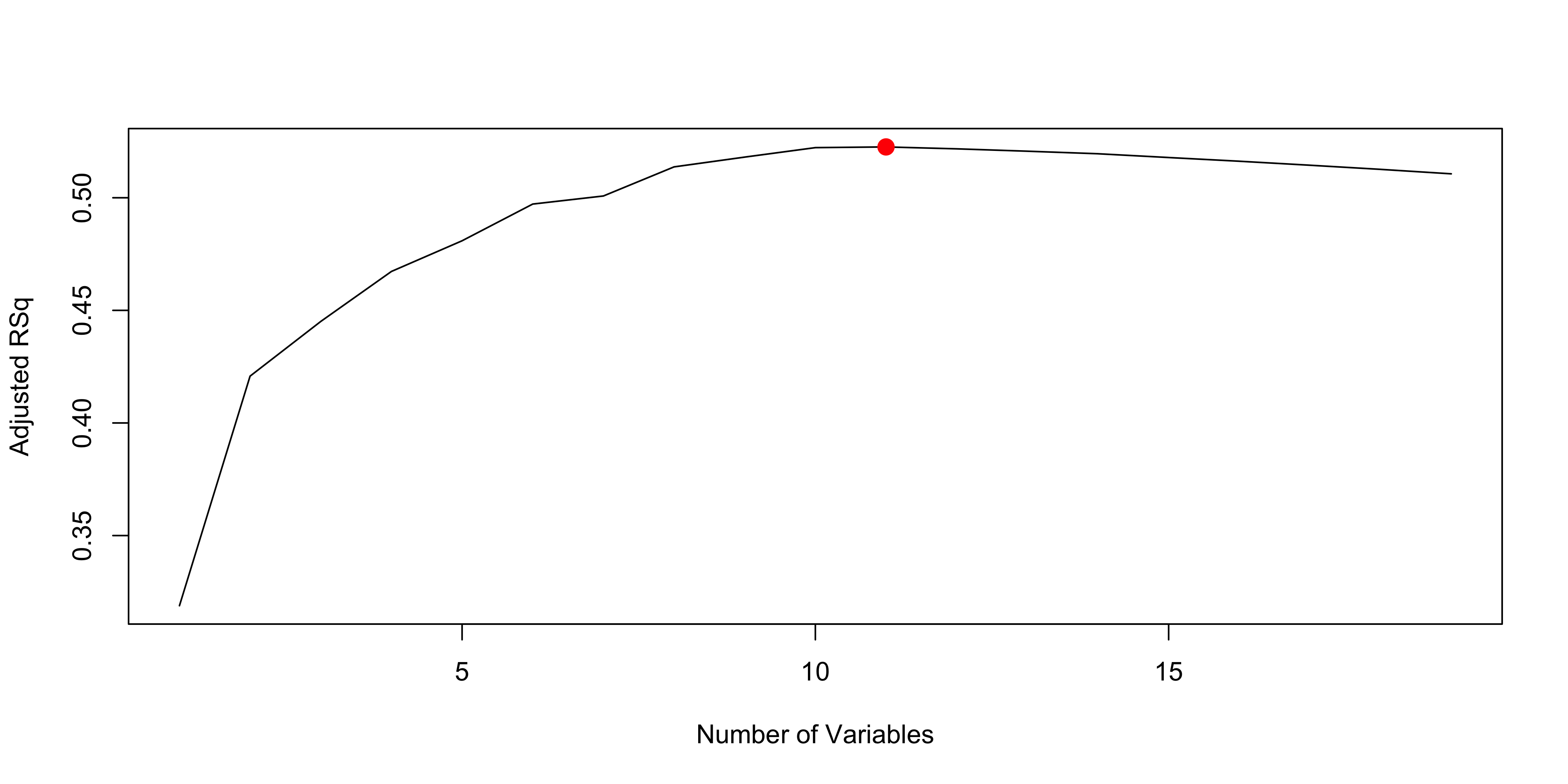

- Mark the model with the largest adjusted
R^2
[1] 11plot(reg.summary$adjr2, xlab = "Number of Variables",
ylab = "Adjusted RSq", type = "l")
points(11, reg.summary$adjr2[11], col = "red", cex = 2,
pch = 20)

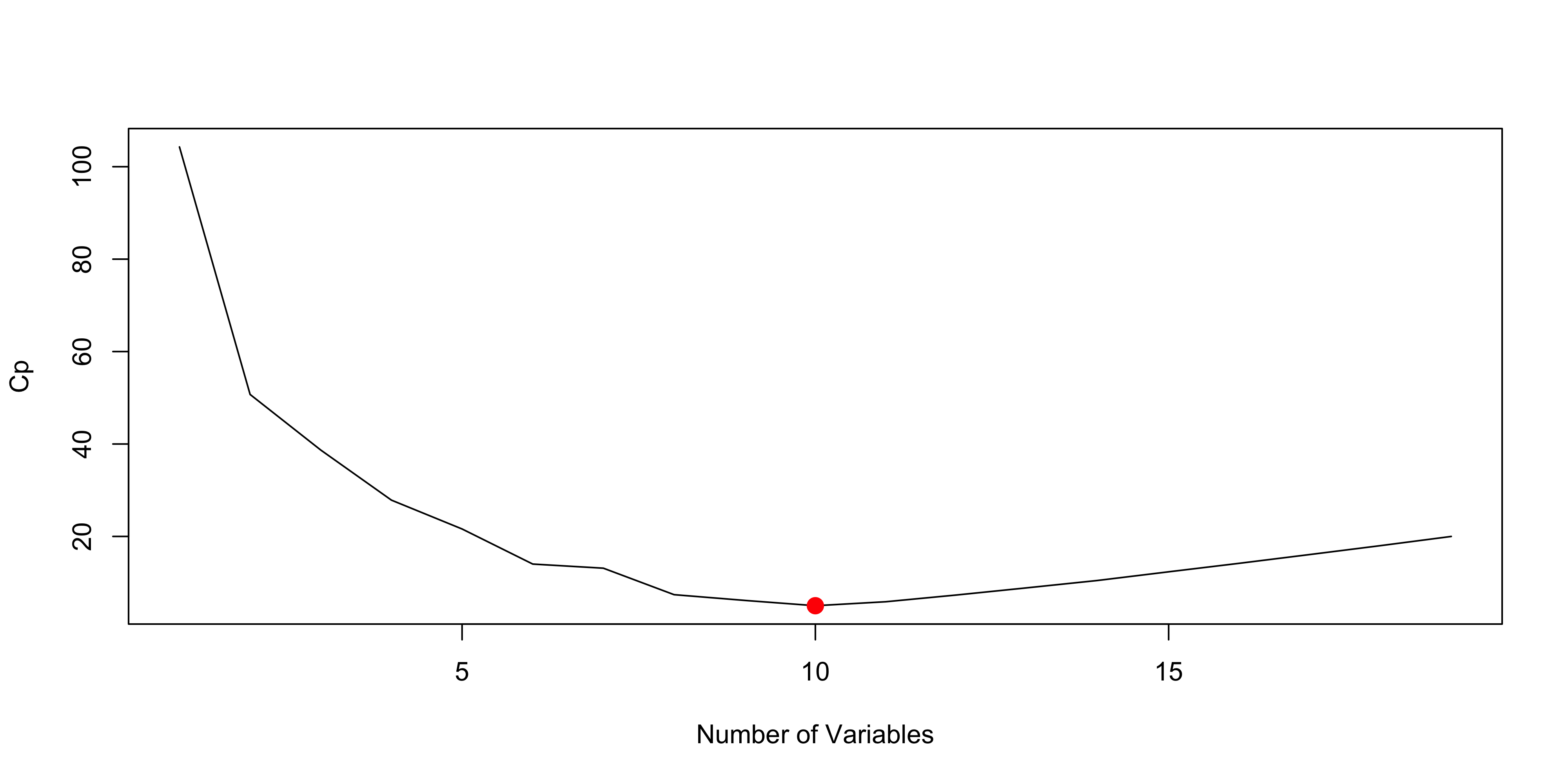

- Use
which.min()to identify the best model byC_pand BIC
plot(reg.summary$cp, xlab = "Number of Variables",
ylab = "Cp", type = "l")
which.min(reg.summary$cp)[1] 10

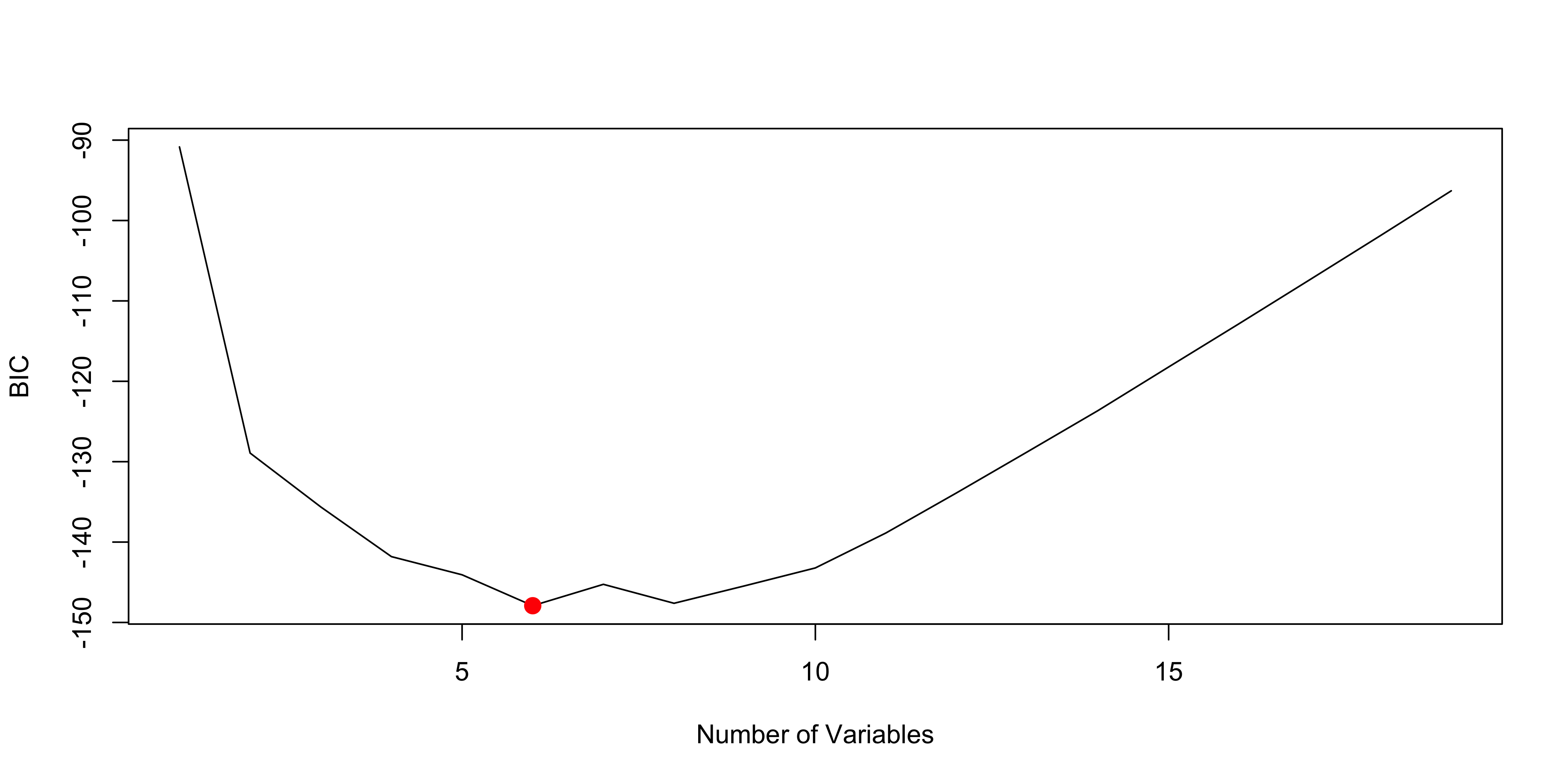

[1] 6plot(reg.summary$bic, xlab = "Number of Variables",
ylab = "BIC", type = "l")
points(6, reg.summary$bic[6], col = "red", cex = 2,
pch = 20)

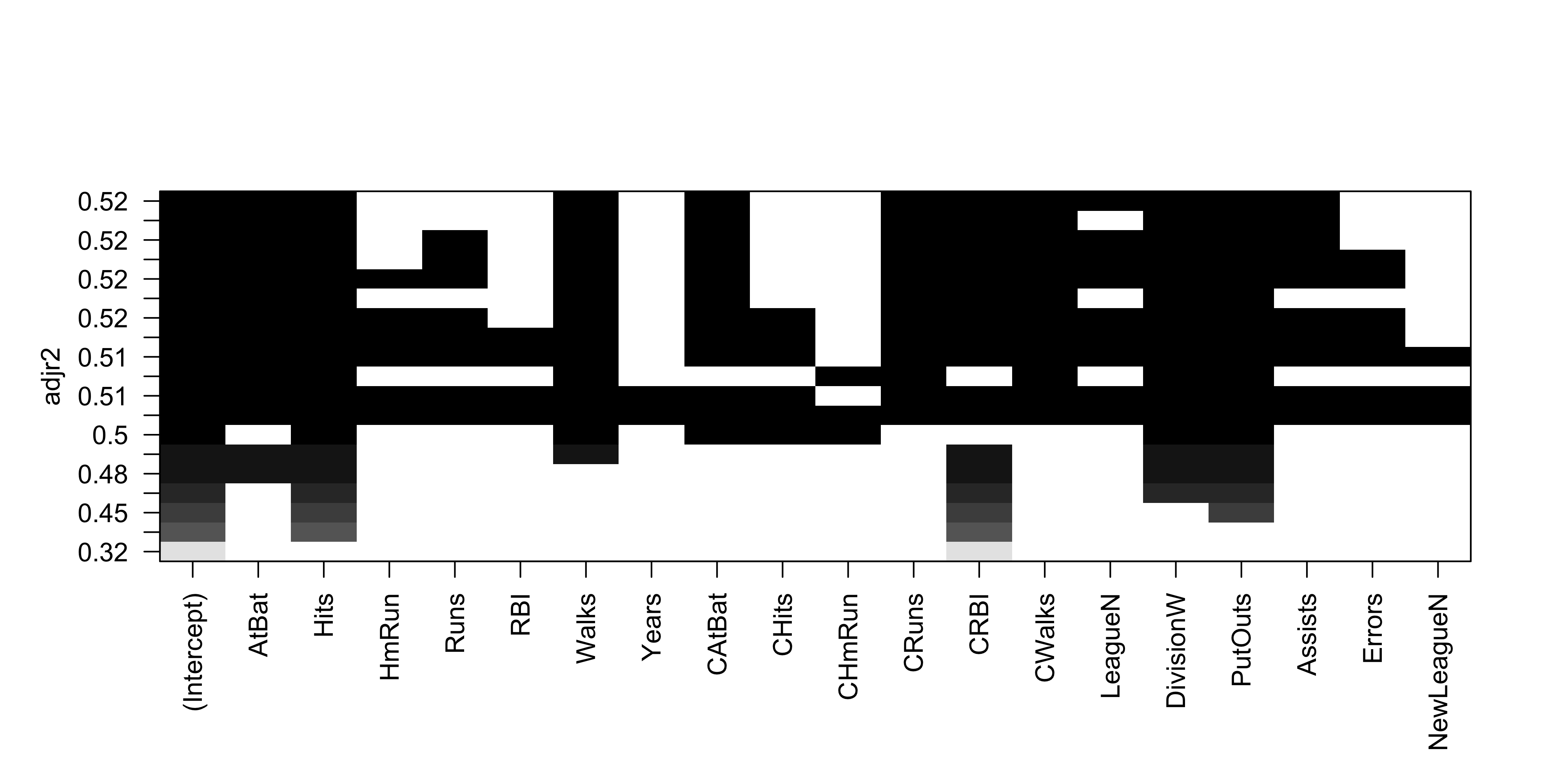

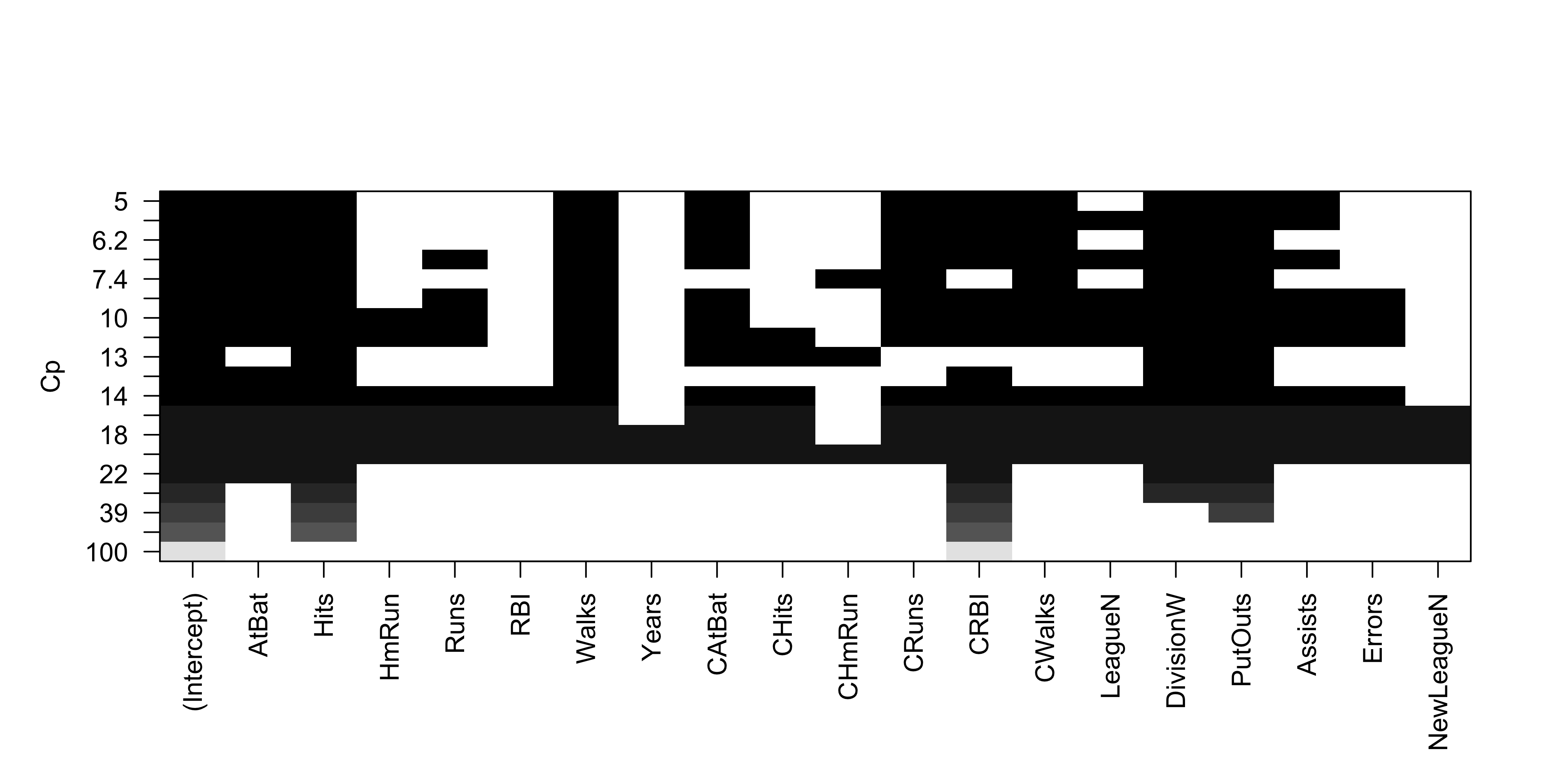

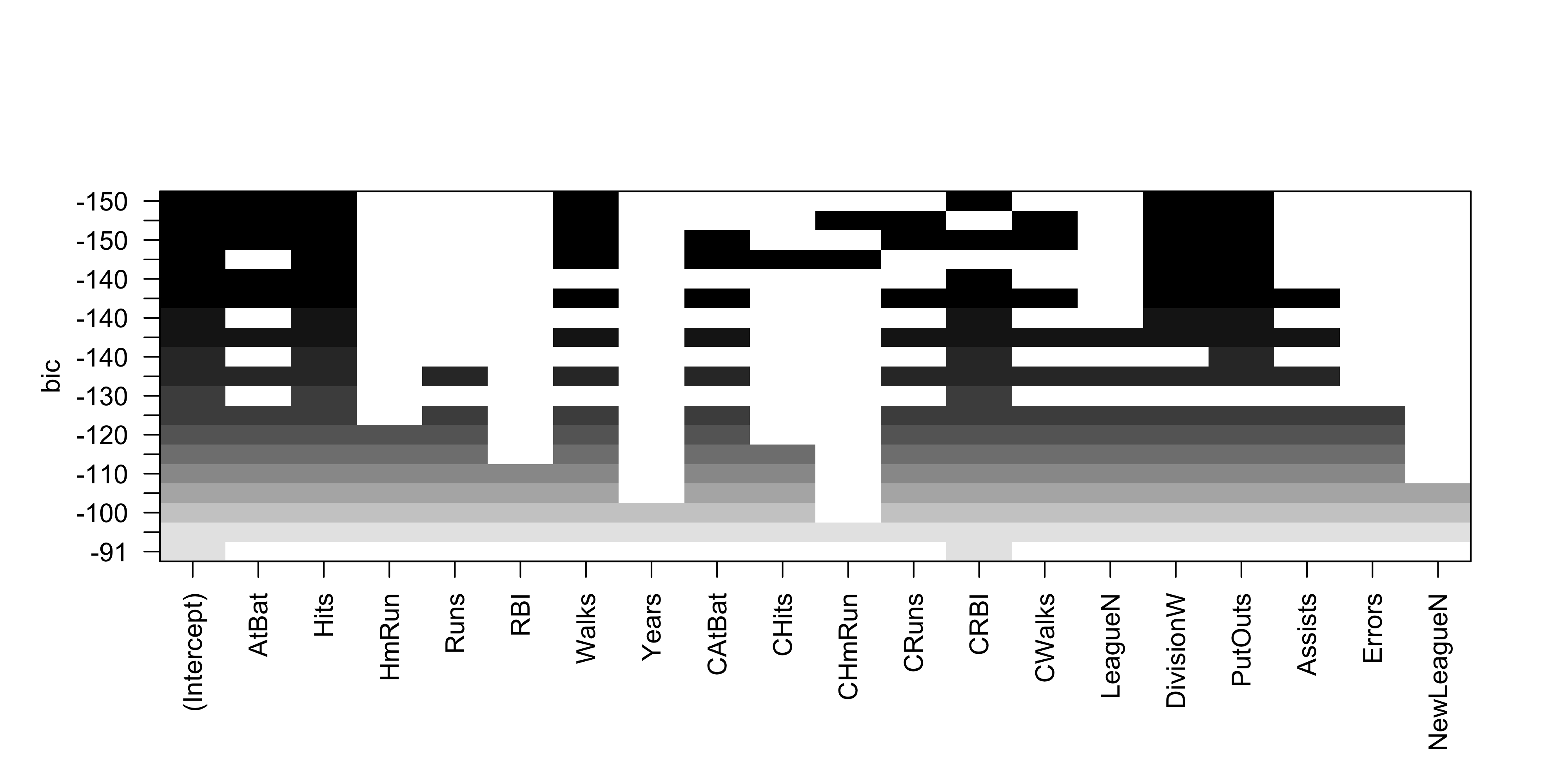

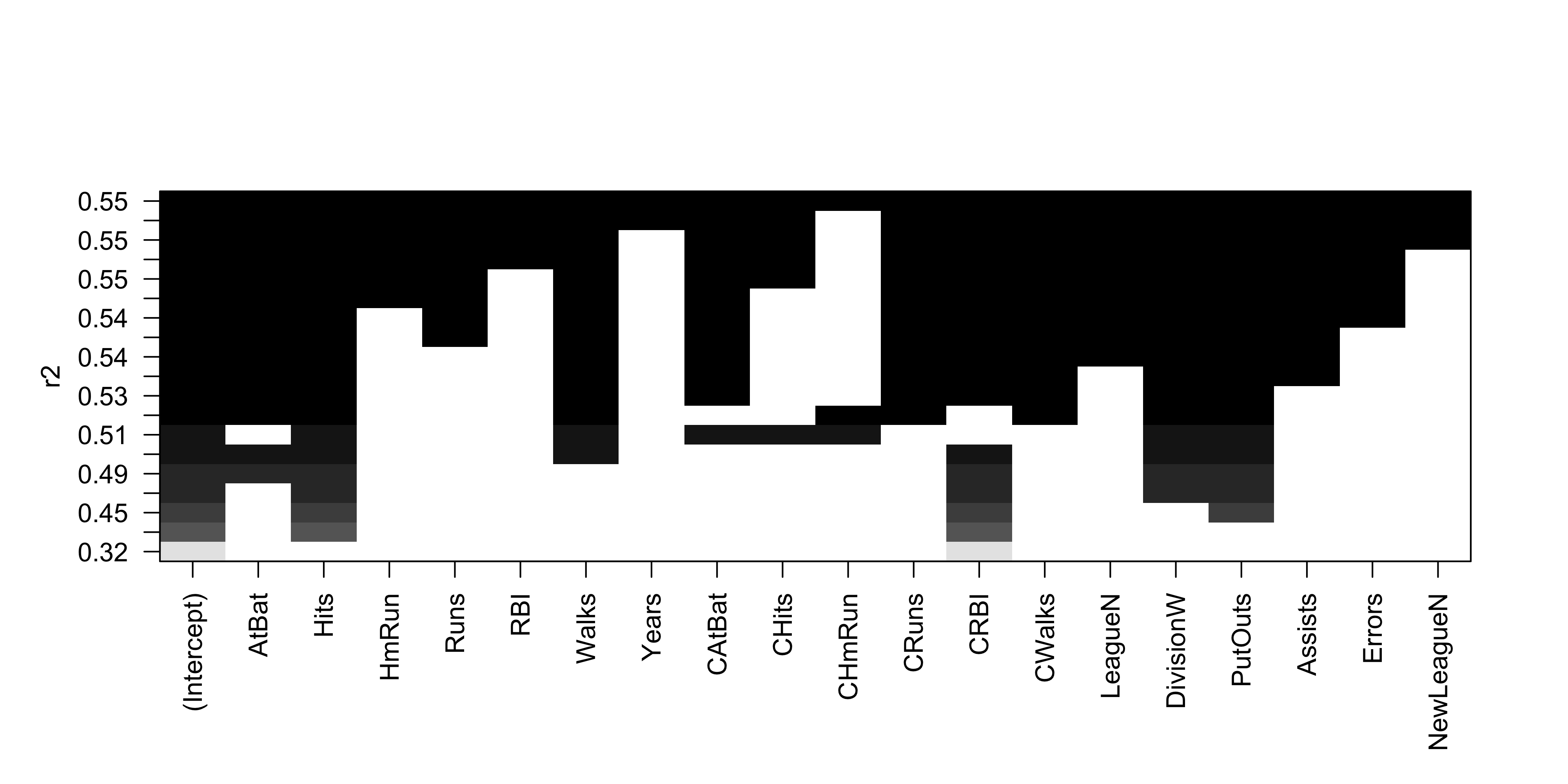

plot.regsubsets()displays selected variables by model size
- Models can be ranked by:
r2adjr2Cpbic
- Use
coef()to inspect coefficients for a chosen model
- Example: the 6-variable model
Choosing Among Models Using the Validation-Set Approach and Cross-Validation
Model size can also be selected using:
- validation set
- cross-validation
Important: all model-fitting steps must use only the training data
Variable selection must also be performed within the training set
Create a training/test split
trainisTRUEfor training observations
testisTRUEfor test observations
- Perform best subset selection on the training data only
- Build a model matrix for the test data
- Compute validation error for each model size
- For each
i:- extract coefficients
- compute predictions
- compute test MSE
- Select the model with the smallest validation error
[1] 164377.3 144405.5 152175.7 145198.4 137902.1 139175.7 126849.0 136191.4
[9] 132889.6 135434.9 136963.3 140694.9 140690.9 141951.2 141508.2 142164.4
[17] 141767.4 142339.6 142238.2[1] 7 (Intercept) AtBat Hits Walks CRuns CWalks
67.1085369 -2.1462987 7.0149547 8.0716640 1.2425113 -0.8337844
DivisionW PutOuts
-118.4364998 0.2526925 regsubsets()has no built-inpredict()method
- Define a custom prediction function for reuse
- Refit best subset selection on the full dataset
- Then extract the chosen model size from the full data
(Intercept) Hits Walks CAtBat CHits CHmRun
79.4509472 1.2833513 3.2274264 -0.3752350 1.4957073 1.4420538
DivisionW PutOuts
-129.9866432 0.2366813 The best 7-variable model on the full data may differ from the one on the training set
Now use cross-validation for model selection
Create:
- 10 folds
- a matrix to store CV errors
- For each fold:
- fit best subset selection on training folds
- predict on the validation fold
- store the MSE for each model size

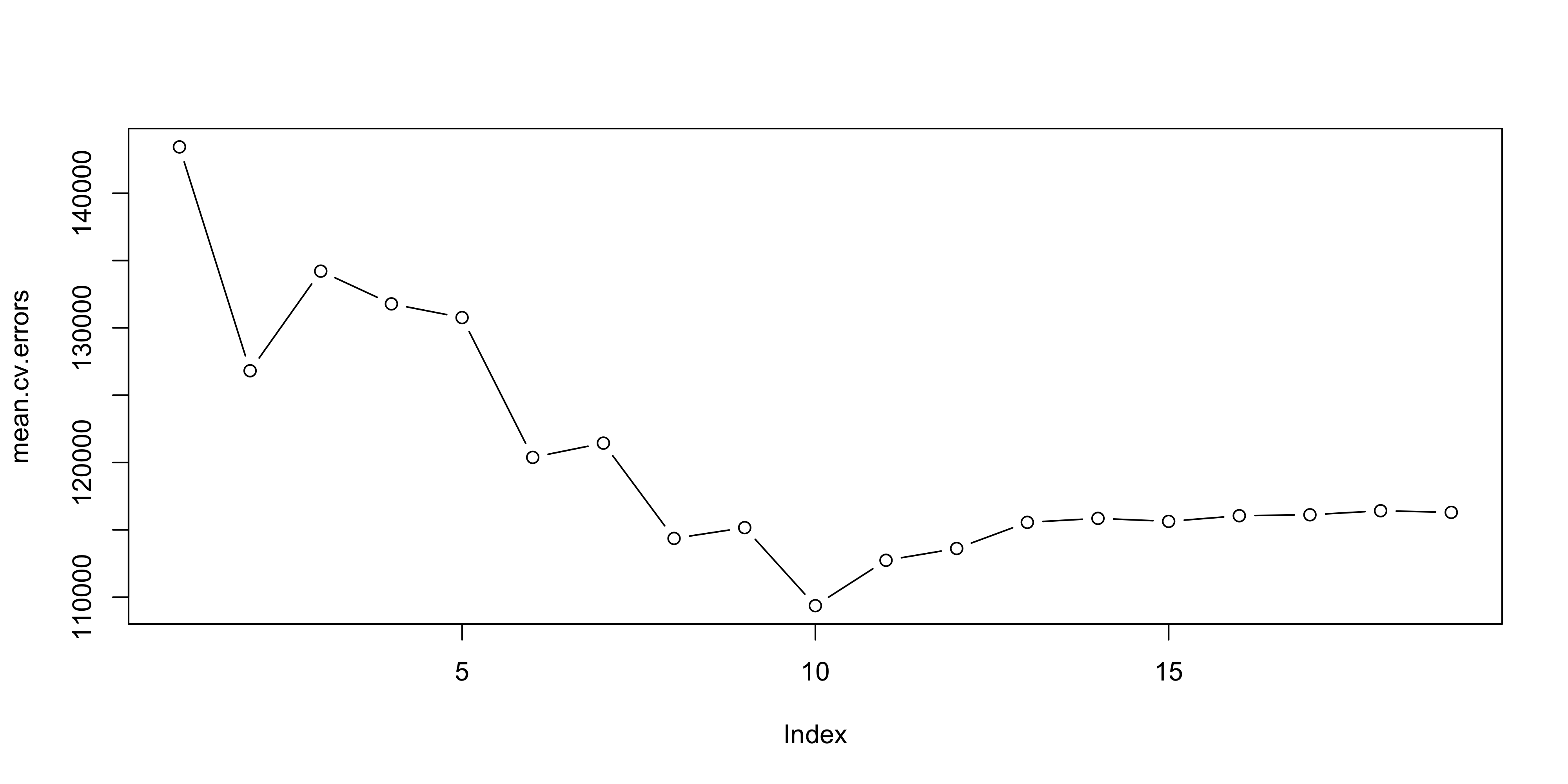

- Average CV errors across folds using
apply()
1 2 3 4 5 6 7 8
143439.8 126817.0 134214.2 131782.9 130765.6 120382.9 121443.1 114363.7
9 10 11 12 13 14 15 16
115163.1 109366.0 112738.5 113616.5 115557.6 115853.3 115630.6 116050.0
17 18 19
116117.0 116419.3 116299.1
- Cross-validation selects the model size with minimum average CV error
- Refit on the full data and extract that model
